Same model may have multiple batches, images only for reference.

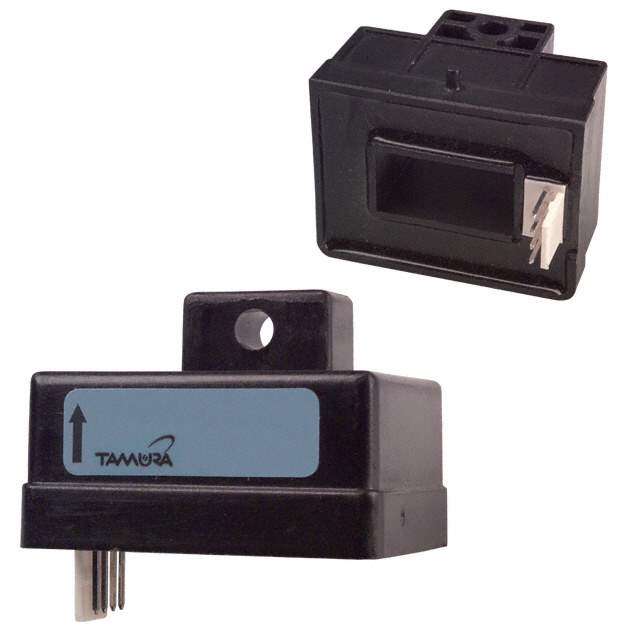

L03S400D15 Real Image
Same model may have multiple batches, images only for reference.

L03S400D15

Part No L03S400D15
Manufacturer Tamura
Catalog Current Transducers
Description SENSOR CURRENT HALL 400A AC/DC
Datasheet
L03S400D15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Tamura
Packaging Bulk
Status Active
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 400A
Number of Channels 1
Output Ratiometric, Voltage
Frequency DC to 50kHz
Linearity ±1%
Accuracy ±1%
Supply Voltage - Operating ±15V
Response Time 5μs
Current - Supply (Max) 12mA
Temperature Range - Operating -20°C to 80°C
Polarization Bidirectional
Mounting Through Hole
Dimension Module
Win Source Part Number 205896-L03S400D15
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian L03S400D15 CAD Model

Description

The Tamura 205896-L03S400D15 is a module sensor type that uses Hall effect, open loop technology with a current sensing of 400A.

  • Response Time: 5μs
  • Mounting: through hole
  • Polarization: bidirectional and can measure AC/DC.
  • Sensitivity: -
  • Accuracy: ±1%
  • Linearity: ±1%
  • Current Supply (max): 12mA
  • Popularity: medium
  • Supply and Demand Status: limited
  • Operating Temperature Range: -20°C to 80°C
  • Supply Voltage - Operating: ±15V
  • Category: sensors, transducers.
