Same model may have multiple batches, images only for reference.

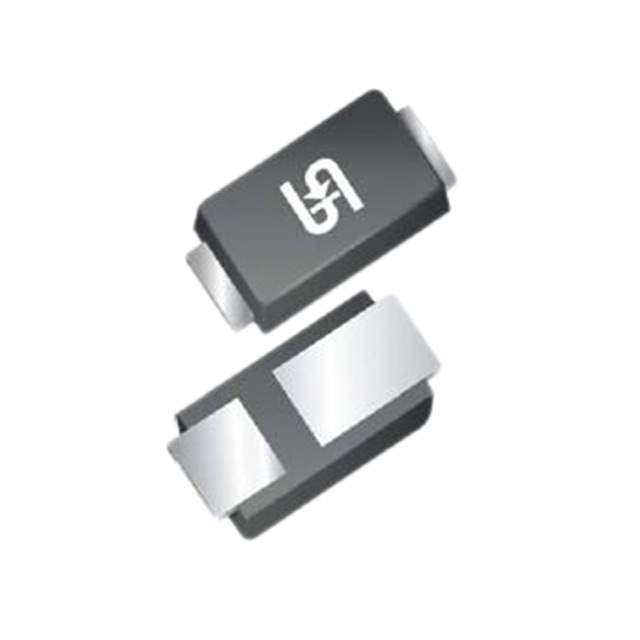

SS13M RSG Real Image
Same model may have multiple batches, images only for reference.

SS13M RSG

Part No SS13M RSG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 1A MICRO SMA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 11 Weeks
Features Diode Schottky 30 V 1A Surface Mount Micro SMA
Manufacturer Taiwan Semiconductor
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package 2-SMD, Flat Lead
Case / Package Micro SMA
Family Name SS13
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number SS13M RSGCT, SS13MRSGCT, SS13M RSGDKR-ND, SS13MRSGDKR, SS13M RSGDKR, SS13M RSGCT-ND, SS13M RSGTR, SS13M RSGTR-ND, SS13MRSGTR
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 897602-SS13M RSG
Ultra Librarian 3D Model Ultra Librarian SS13M RSG CAD Model

Description

The Taiwan Semiconductor SS13M RSG is a fast recovery diode Schottky with a surface mount micro SMA package.

  • Maximum Forward Voltage: 30 V
  • Current Rating: 1A
  • Package: micro SMA
  • Units per Reel: 3000
  • Estimated Production Lead Time: 11 weeks
  • ECCN: EAR99
  • REACH: unaffected
  • HTSUS: 8541.10.0080
