Same model may have multiple batches, images only for reference.

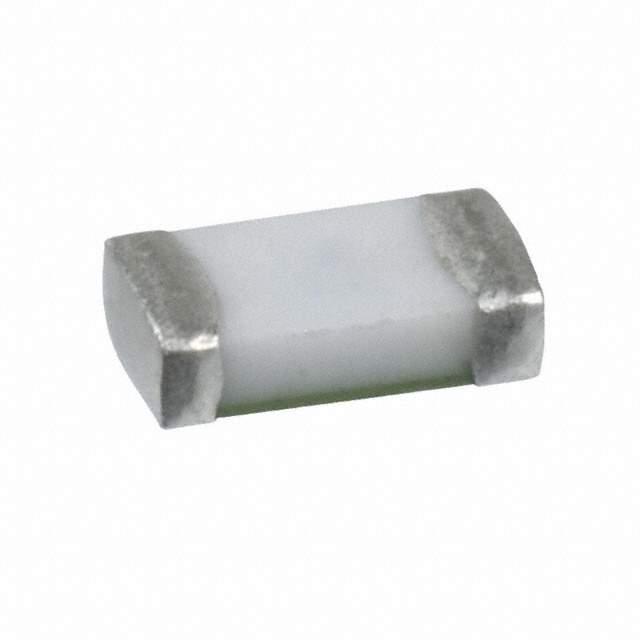

TR/3216FF7-R Real Image
Same model may have multiple batches, images only for reference.

TR/3216FF7-R

Part No TR/3216FF7-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description Fuse Chip Fast Acting 7A 32V SMD Solder Pad 1206 T/R CSA/UL/cULus / FUSE BOARD MNT 7A 32VAC/VDC 1206
Datasheet
TR/3216FF7-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 7A
Voltage Rating - AC 32V
Voltage Rating - DC 32V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 3.623
Approvals CSA, UL
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.007 Ohm
Win Source Part Number 115940-TR/3216FF7-R
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 3216FF
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian TR/3216FF7-R CAD Model

Description

The Eaton Bussmann 115940-TR/3216FF7-R is a high-popularity circuit protection fuse, suitable for board mount applications.

  • Response: fast-response
  • Current Rating: 7A
  • Voltage Ratings: 32V AC and DC
  • Breaking Capacity: 50A
  • Approvals: CSA and UL
  • Mounting: SMD technology
  • Temperature Range: -55°C to 125°C
  • Nominal Melting I2t: 3.623
  • Nominal Cold Resistance: 0.007 Ohm
  • Supply and Demand Status: balanced
  • Estimated EOL date: 2026
