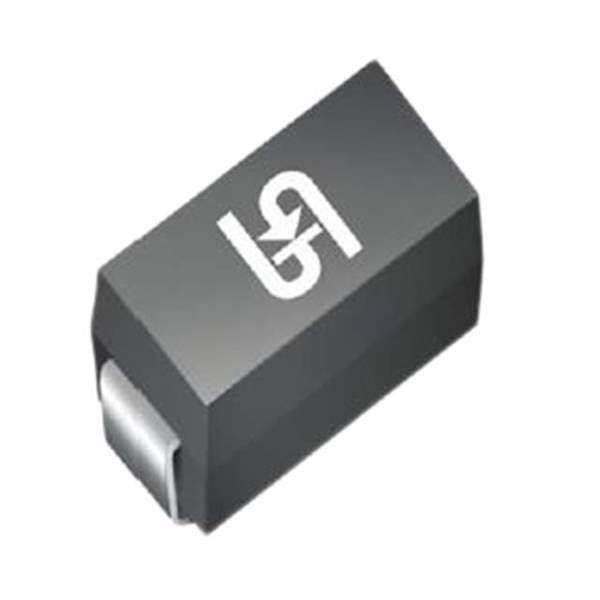

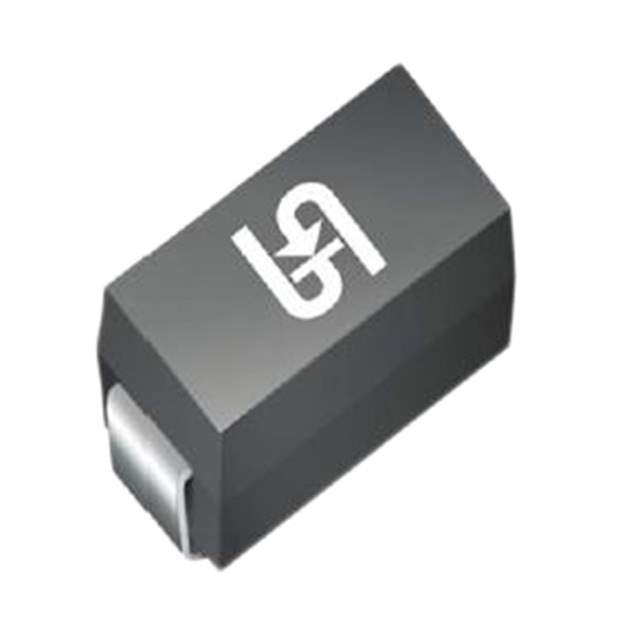

The Taiwan Semiconductor SS110 R3 is a surface-mount diode with a SMA case/package.

• Case/Package: SMA
• Forward Voltage: 800 mV
• Peak Non-Repetitive Surge Current: 40 A
• Forward Current: 1 A
• Peak Reverse Current: 2 mA
• Maximum Operating Temperature: 150 °C
• Minimum Operating Temperature: -65 °C
• Maximum Repetitive Reverse Voltage (Vrrm): 100 V
• Maximum Forward Surge Current (Ifsm): 30 A
• Length: 4.6 mm
• Width: 2.83 mm
• Height: 2.3 mm
• Number of Pins: 2
• Element Configuration: Single
• RoHS Compliant: Yes
• Alternative Parts: SS110 R3SS110-R3 and SS110R3
• Supply and Demand Status: Shortage
