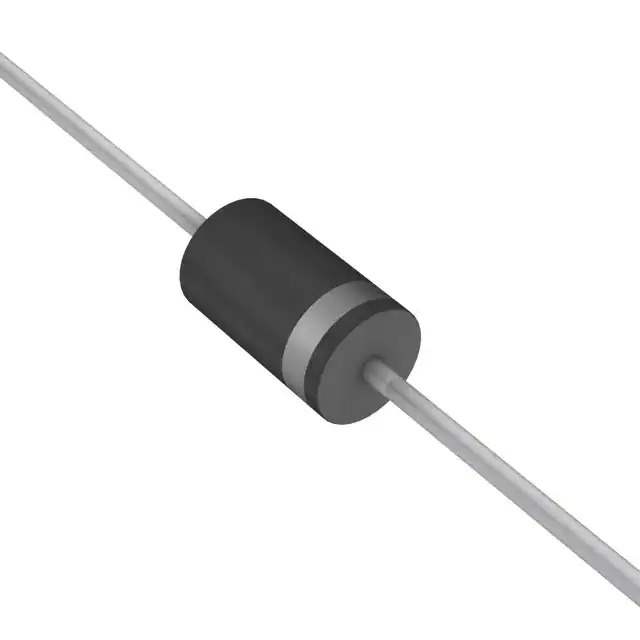

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 30 V
Mounting Type Through Hole
Package / Case DO-201AD, Axial
Supplier Device Package DO-201AD
Operating Temperature - Junction -55°C ~ 125°C
Standard Package 1,250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 675960-SR803
Ultra Librarian 3D Model Ultra Librarian SR803 CAD Model

Description

The SR803 is a single schottky diode with a maximum reverse voltage of 30 V. The SR803 is an active product from Taiwan Semiconductor.

  • Maximum Reverse Voltage: 30 V
  • Average Rectified Current: 8A
  • Forward Voltage: 550 mV @ 8 A
  • Reverse Leakage Current: 500 μA @ Rated Voltage
  • Mounting Type: Through-Hole
  • Package: DO-201AD, Axial
  • Package Quantity: 1,250 pieces (Tape and Reel)
  • Operating Temperature Range: -55°C to 125°C
