HFCG-1500+ Mini-Circuits

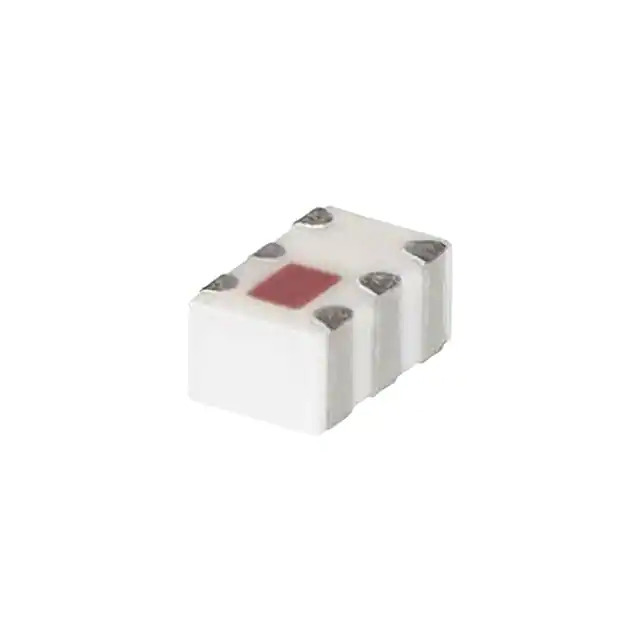

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Ceramic Filters
Mfr Mini-Circuits
Series -
Package Tape & Reel
Product Status Active
Frequency 3.8GHz Center
Impedance 50Ohm
Bandwidth 4.4 GHz
Insertion Loss 1.7dB
Filter Type High Pass
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), 6 PC Pad
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.24mm)
Height (Max) 0.042" (1.07mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369437-HFCG-1500+
Ultra Librarian 3D Model Ultra Librarian HFCG-1500+ CAD Model

Description

The 1369437-HFCG-1500+ is a ceramic filter manufactured by Mini-Circuits.

  • Filter Type: High Pass
  • Frequency: 3.8GHz
  • Package Size: 0805 (2012 Metric) with 6 PC pads
  • Mounting Type: Surface Mount
  • Insertion Loss: 1.7dB
  • Impedance: 50Ohm
  • Product Series: Active
  • Packaging: Tape & Reel
  • Height: 0.042" (1.07mm)
  • Dimensions: 0.079" L x 0.049" W (2.00mm x 1.24mm)
