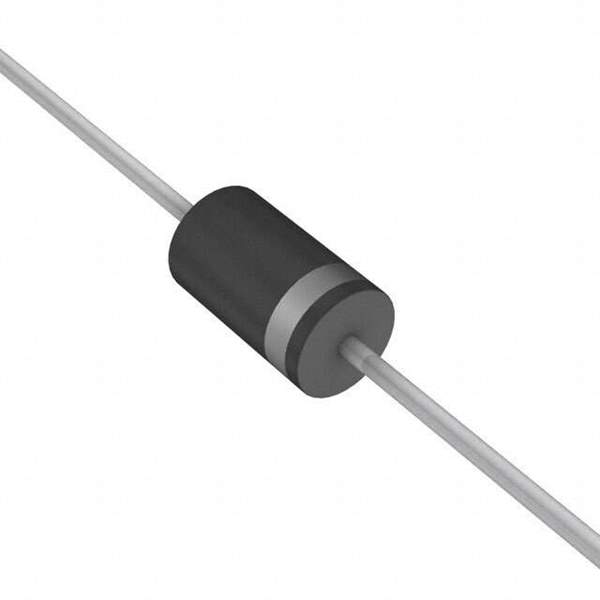

SR503 Real Image
Same model may have multiple batches, images only for reference.

SR503

Part No SR503
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 5A 30V DO-201AD / Diode Schottky 30 V 5A (DC) Through Hole DO-201AD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Taiwan Semiconductor Corporation
Package Tape & Reel (TR)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 5A (DC)
Voltage - Forward (Vf) (Max) @ If 550 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 30 V
Mounting Type Through Hole
Package / Case DO-201AD, Axial
Supplier Device Package DO-201AD
Operating Temperature - Junction -55°C ~ 125°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 1801-SR503TR
Standard Package 1,250
Win Source Part Number 990771-SR503
Ultra Librarian 3D Model Ultra Librarian SR503 CAD Model

Description

The Taiwan Semiconductor Corporation SR503 is a fast recovery Schottky diode that is designed for use in rectifier circuits. With a voltage input of 30V, it is capable of providing a current output of 5A.

  • Voltage Input: 30V
  • Current Output: 5A
  • Forward Voltage Drop: 550 mV @ 5 A
  • Reverse Leakage Current: 500 µA @ 30 V
  • Mounting Type: Through Hole
  • Package: DO-201AD, Axial
  • Operating Temperature Range: -55°C ~ 125°C
  • REACH: Unaffected
