Same model may have multiple batches, images only for reference.

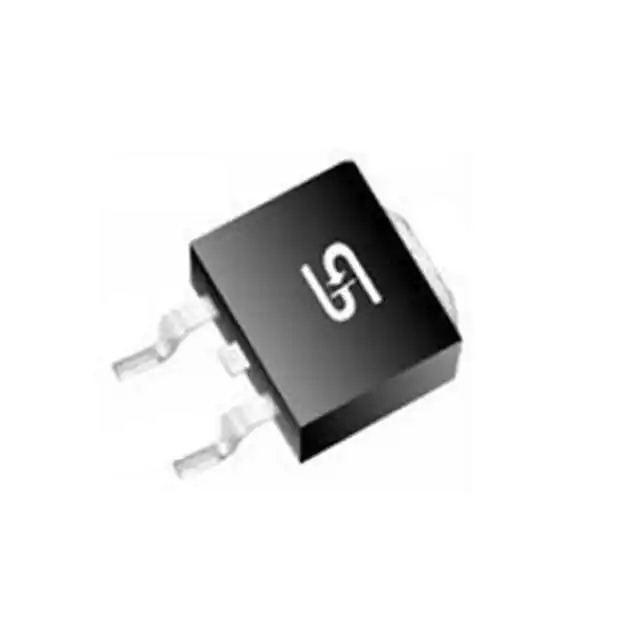

SFAS802G MNG Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

SFAS802G MNG

Part No SFAS802G MNG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 100V 8A TO263AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor Corporation
Series -
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 10 µA @ 100 V
Capacitance @ Vr, F 80pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263AB (D²PAK)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SFAS802
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366858-SFAS802G MNG
Ultra Librarian 3D Model Ultra Librarian SFAS802G MNG CAD Model

Description

The 1366858-SFAS802G MNG is a single diode rectifier manufactured by Taiwan Semiconductor Corporation.

  • Manufacturer: Taiwan Semiconductor Corporation
  • Series: SFAS802
  • Package / Case: TO-263-3, D²Pak
  • Voltage - DC Reverse (Vr) (Max): 100 V
  • Current - Average Rectified (Io): 8 A
  • Voltage - Forward (Vf) (Max) @ If: 950 mV @ 8 A
  • Current - Reverse Leakage @ Vr: 10 µA @ 100 V
  • Operating Temperature - Junction: -55°C ~ 150°C
  • Mounting Type: Surface Mount
  • Reverse Recovery Time (trr): < 500 ns
  • Packaging: Tape and Reel
