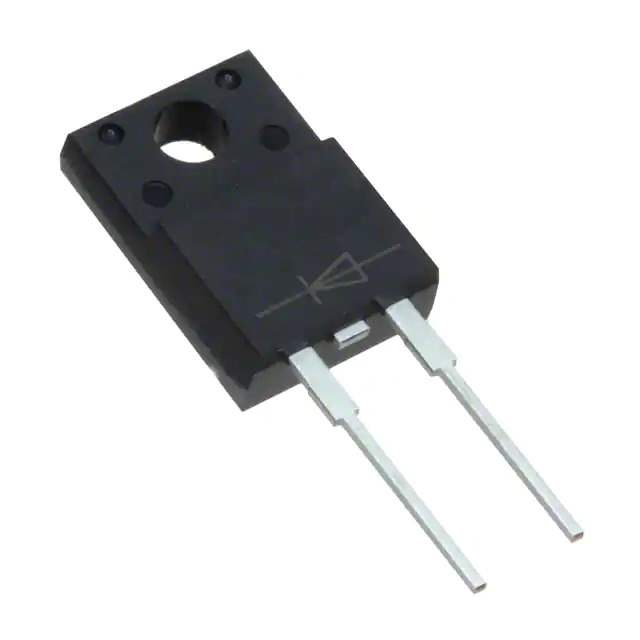

SFAF804G Real Image
Same model may have multiple batches, images only for reference.

SFAF804G

Part No SFAF804G
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 200V 8A ITO220AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor
Package Tube
Product Status Discontinued
Technology Standard
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 10 µA @ 200 V
Capacitance @ Vr, F 90pF @ 4V, 1MHz
Mounting Type Through Hole
Package / Case TO-220-2 Full Pack
Supplier Device Package ITO-220AC
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SFAF804
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 665286-SFAF804G
Ultra Librarian 3D Model Ultra Librarian SFAF804G CAD Model

Description

The 665286-SFAF804G is a fast recovery diode with a maximum DC reverse voltage of 200V and an average rectified current of 8A.

  • Maximum DC Reverse Voltage: 200V
  • Average Rectified Current: 8A
  • Designed for: Rectifier applications where fast recovery times are required, such as in power supplies and inverters
  • Features: Low forward voltage drop, low reverse leakage current, low reverse recovery time and a low capacitance
  • Package: TO-220-2 Full Pack
