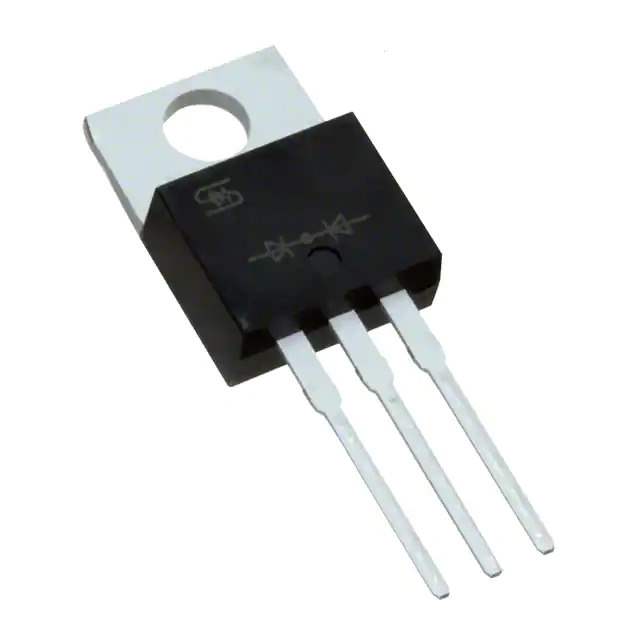

HER1004G Real Image
Same model may have multiple batches, images only for reference.

HER1004G

Part No HER1004G
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 300V 10A TO220AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Standard
Voltage - DC Reverse (Vr) (Max) 300 V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Max) @ If 1 V @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 10 µA @ 300 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220AB
Base Product Number HER1004
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 597280-HER1004G
Ultra Librarian 3D Model Ultra Librarian HER1004G CAD Model

Description

The HER1004G is a fast recovery diode array designed for rectification applications.

  • Maximum Voltage Rating: 300V
  • Forward Voltage Drop: 1V @ 5A
  • Reverse Recovery Time: 50ns
  • Diode Configuration: 1 pair common cathode
  • Package: TO-220-3
  • Standard Package: 50 pieces
  • Commonly Used In: Discrete semiconductor products, specifically in diode rectifiers
  • Temperature Range: -55°C to 150°C
  • Manufactured by: Taiwan Semiconductor
  • Product Status: Active
