Products specifications

Case / Package Module
Current - Output 1 6.7 A
Features OCP, OTP, OVP
Height 12.7 mm
Isolation Voltage 3 kV
Length 61.976 mm
Max Input Voltage 76 V
Max Operating Temperature 85 °C
Max Output Current 6.7 A
Max Power Dissipation 100 W
Min Input Voltage 36 V
Min Operating Temperature -20 °C
Mount Through Hole
Number of Outputs 1
Number of Pins 8
Output Current 6.7 A
Output Power 100 W
Output Voltage 15 V
Packaging Bulk
RoHS Compliant
Voltage - Output 1 15 V
Width 85.852 mm
Win Source Part Number 1187436-PH100S4815
Categories Board Mount Modules
Manufacturer TDK-Lambda Americas Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PH100S4815 CAD Model

Description

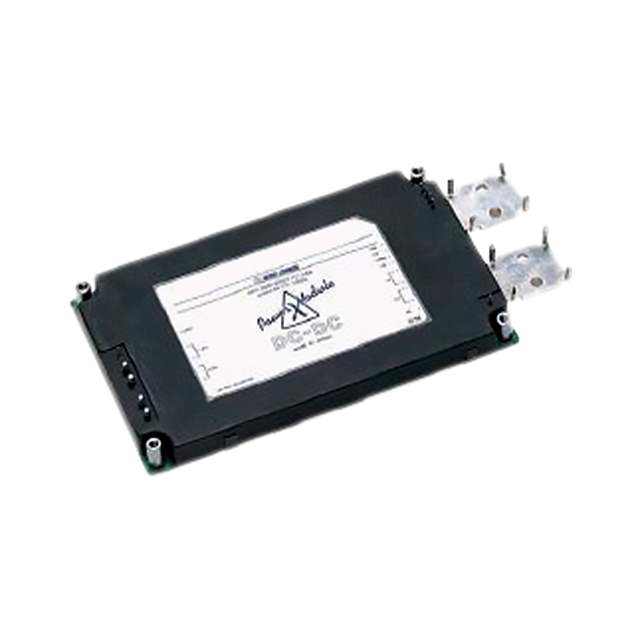

The PH100S4815 is a module type component that comes with OCP, OTP, and OVP features. It has a length of 61.976 mm, a height of 12.7 mm, and a width of 85.852 mm.

  • Pins: 8
  • Isolation Voltage: 3 kV
  • Outputs: 1
  • Output Voltage: 15V
  • Output Power: 100W
  • RoHS: Compliant
  • Popularity: Medium (30 pct)
  • Supply and Demand Status: Limited
  • Manufacturer: TDK-Lambda Americas Inc.
