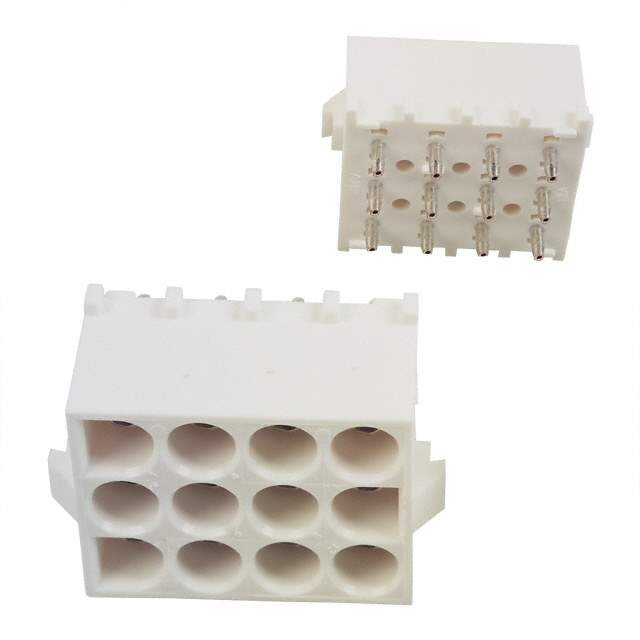

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Universal MATE-N-LOK
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.250" (6.35mm)
Number of Positions 12
Number of Rows 3
Row Spacing - Mating 0.250" (6.35mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.155" (3.94mm)
Insulation Height 0.550" (13.97mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-2
Insulation Color Natural
Applications General Purpose
Base Product Number 350433
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 3504331,2266-350433-1,A1476,-350433-1-SI,-350433-1-CSI
Standard Package 42
Win Source Part Number 1182521-350433-1
Ultra Librarian 3D Model Ultra Librarian 350433-1 CAD Model

Description

The Universal MATE-N-LOK Header is a connector type header used in board-to-cable/wire applications.

  • Pitch Mating: 0.250" (6.35mm)
  • Termination: Solder
  • Contact Material: Phosphor Bronze
  • Material Flammability Rating: UL94 V-2
  • Design: Shrouded-4 Wall
  • Mounting: Through Hole
  • Row Spacing: 0.250" (6.35mm)
  • Positions Loaded: 12
  • Rows: 3
  • Fastening Type: Locking Ramp
  • Voltage Rating: Unspecified
  • Application: General Purpose
  • Package: Tray
  • Contact Finish: Tin
  • Contact Length for Post: 0.155" (3.94mm)
  • Insulation Height: 0.550" (13.97mm)
  • Alternative Part Number: 350433-1
  • Manufacturer: TE Connectivity AMP Connectors
