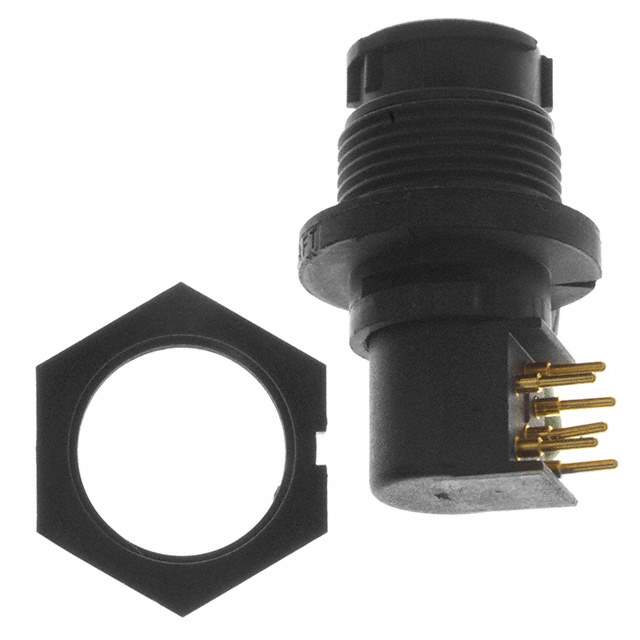

EN3P6FRAPCX Real Image
Same model may have multiple batches, images only for reference.

EN3P6FRAPCX

Part No EN3P6FRAPCX
Manufacturer Switchcraft Inc.
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE 6POS GOLD SOLDER / 6 Position Circular Connector Receptacle, Female Sockets Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Switchcraft Inc.
Series EN3®
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 6
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Termination Solder
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Plastic
Shell Material Thermoplastic
Contact Finish - Mating Gold
Color Black
Ingress Protection IP66/IP68 - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating UL94 V-0
Shielding Unshielded
Current Rating (Amps) 4A
Voltage Rating 250VAC/DC
Temperature Range - Operating -40°C ~ 65°C
Contact Material Copper Alloy
Insert Material Elastomer
Applications General Purpose, Instrumentation, Marine, Medical
Base Product Number EN3P6F
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1340049-EN3P6FRAPCX
Ultra Librarian 3D Model Ultra Librarian EN3P6FRAPCX CAD Model

Description

The EN3P6FRAPCX is a circular connector assembly used for various applications from Switchcraft Inc. It is a part of the EN3 series.

  • Series: EN3
  • Win Source Part Number: 1340049
  • Number of Positions: 6
  • Color: Black
  • Connector Type: Receptacle, Female Sockets
  • Termination: Solder
  • Fastening Type: Bayonet Lock
  • Packaging: Bulk
  • Contact Material: Copper Alloy
  • Voltage Rating: 250VAC/DC
  • Ingress Protection: IP66/IP68
