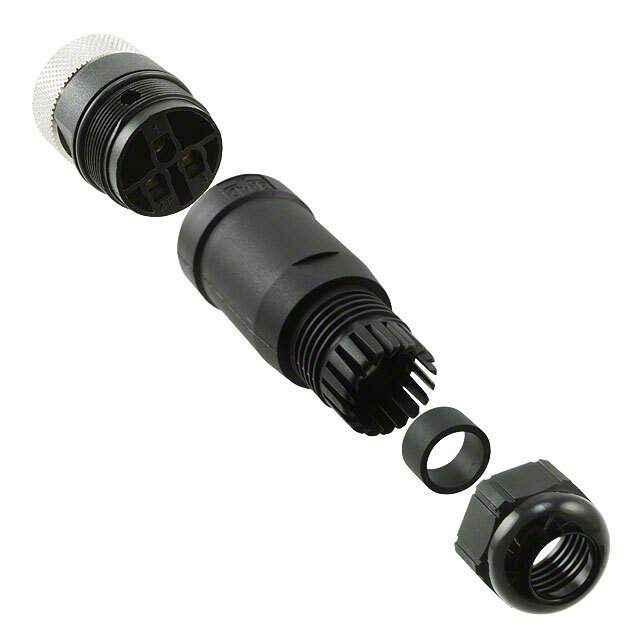

1300170004 Real Image
Same model may have multiple batches, images only for reference.

1300170004

Part No 1300170004
Manufacturer Molex, LLC
Catalog Circular Connectors - Assemblies
Description CONN PLUG FMALE 3POS GOLD SCREW / 3 Position Circular Connector Plug, Female Sockets Screw
Datasheet
1300170004 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Assemblies
Manufacturer Molex
Packaging Bulk
Connector Type Plug, Female Sockets
Number of Positions 3
Mounting Free Hanging (In-Line)
Termination Screw
Fastening Type Threaded
Orientation Keyed
Primary Material Plastic
Shell Material Polyamide (PA), Nylon
Contact Finish - Mating Gold
Color Black, Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Features Backshell, Coupling Nut
Current Rating (Amps) 13A
Voltage Rating 600VAC/DC
Cable Opening 0.200" ~ 0.450" (5.08mm ~ 11.43mm)
Temperature Range - Operating -20°C ~ 80°C
Backshell Material, Plating Polyamide (PA), Nylon
Contact Material Copper Alloy
Insert Material Polyamide (PA), Nylon
Applications Industrial
Base Product Number 130017
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Other Part Number 2266-1300170004,130017-0004-E,SD-130017-002,1A3000-34,WM6161,130017-0004,0130017-0004,1300170004-E,0130017-0004-E,01300170004-E,01300170004,1300170004-ND
Standard Package 1
Win Source Part Number 1334569-1300170004
Ultra Librarian 3D Model Ultra Librarian 1300170004 CAD Model

Description

The Molex 1334569-1300170004 is a 3-position circular connector assembly designed for industrial applications.

  • Positions: 3
  • Connector Type: Plug
  • Designed for: Female Sockets
  • Termination: Screw
  • Features: Backshell and Coupling Nut
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Voltage Rating: 600VAC/DC
  • IP Rating: IP67 (Dust Tight and Waterproof)
  • RoHS3 Compliant: Yes
  • Current Rating: 13A
  • Packaging: Bulk
  • Mounting: Free Hanging (In-Line)
