Same model may have multiple batches, images only for reference.

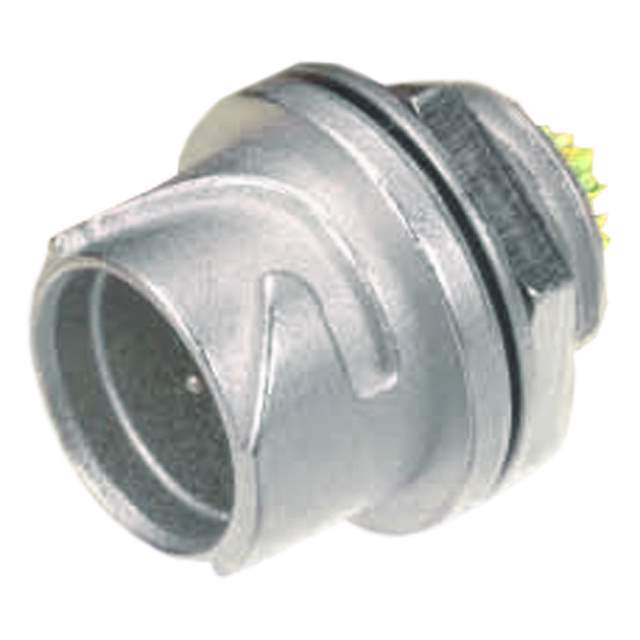

LF10WBR-4S Real Image
Same model may have multiple batches, images only for reference.

LF10WBR-4S

Part No LF10WBR-4S
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE 4P GOLD SLDR CUP / 4 Position Circular Connector Receptacle, Female Sockets Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Assemblies
Manufacturer Hirose Electric Co Ltd
Packaging Tray
Connector Type Receptacle, Female Sockets
Number of Positions 4
Shell Size - Insert 10
Mounting Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP67/IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Current Rating (Amps) 10A
Voltage Rating 125VAC/DC
Temperature Range - Operating -25°C ~ 85°C
Contact Material Copper Alloy
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insert Material Polyphenylene Sulfide (PPS)
Applications Industrial, Telecommunications
Base Product Number LF10WBR
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Part Number HR557,*LF10WBR-4S,LF10WBR4S,136-1006-0-00
Standard Package 60
Win Source Part Number 1334585-LF10WBR-4S
Ultra Librarian 3D Model Ultra Librarian LF10WBR-4S CAD Model

Description

The Hirose Electric Co Ltd LF10WBR-4S is a circular connector assembly that is designed for use in industrial and telecommunications applications.

  • Positions: 4
  • Color: Silver
  • Connector Type: Receptacle, Female Sockets
  • Termination: Solder Cup
  • Fastening Type: Bayonet Lock
  • Contact Material: Copper Alloy
  • Voltage Rating: 125VAC/DC
  • Ingress Protection: IP67/IP68 (Dust Tight and Waterproof)
  • Shielded: Yes
  • Material Flammability Rating: UL94 V-0
  • Packaging: Tray
  • Standard Package: 60
  • Mounting Feature: Bulkhead - Rear Side Nut
  • Shell Size: Insert 10
