Same model may have multiple batches, images only for reference.

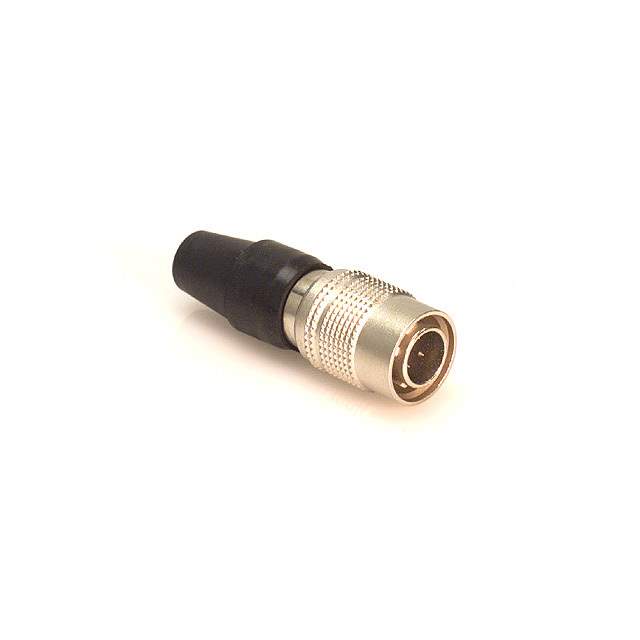

HR10A-7P-4P(73) Real Image
Same model may have multiple batches, images only for reference.

HR10A-7P-4P(73)

Part No HR10A-7P-4P(73)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Assemblies
Description CONN PLUG MALE 4P SILV SLDR CUP / 4 Position Circular Connector Plug, Male Pins Solder Cup
Datasheet
HR10A-7P-4P(73) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Assemblies
Manufacturer Hirose Electric Co Ltd
Packaging Bulk
Connector Type Plug, Male Pins
Number of Positions 4
Shell Size - Insert 7
Mounting Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Push-Pull
Orientation Keyed
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Material Flammability Rating UL94 V-0
Features Backshell, Clamp, Strain Relief
Shielding Unshielded
Current Rating (Amps) 2A
Voltage Rating 150VAC, 200VDC
Temperature Range - Operating -25°C ~ 85°C
Backshell Material, Plating Brass, Nickel
Contact Material Brass
Contact Finish Thickness - Mating 78.7µin (2.00µm)
Insert Material Polyamide (PA), Nylon
Base Product Number HR10
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Part Number HR10A7P4P73,110-0301-2-73,*HR10A-7P-4P(73),HR1582
Standard Package 20
Win Source Part Number 1334427-HR10A-7P-4P(73)
Ultra Librarian 3D Model Ultra Librarian HR10A-7P-4P(73) CAD Model

Description

The HR10A-7P-4P(73) circular connector assembly by Hirose Electric Co Ltd is a plug type connector with male pins.

  • Positions: 4
  • Shielded: false
  • Connector Material: zinc alloy
  • Connector Finish: nickel
  • Contact Material: brass
  • Contact Finish: silver
  • Current Rating: 2A
  • Voltage Rating: 150VAC, 200VDC
  • Mounting: free hanging (in-line)
  • Shell Size: 7
  • Insert Material: Polyamide (PA), Nylon
  • Operating Temperature: -25°C to 85°C
