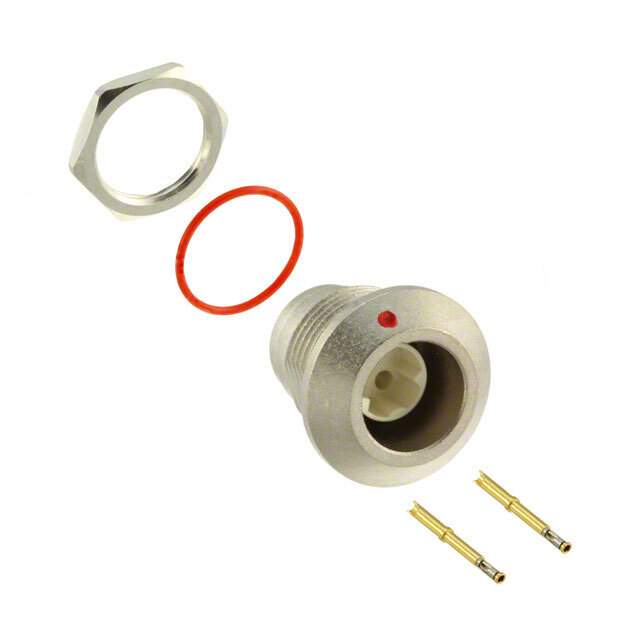

HS2P2F20 Real Image
Same model may have multiple batches, images only for reference.

HS2P2F20

Part No HS2P2F20
Manufacturer Switchcraft Inc.
Catalog Circular Connectors
Description CONN RCPT FMALE 2POS GOLD
Datasheet
HS2P2F20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Switchcraft Inc.
Packaging Bulk
Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 2
Mounting Panel Mount
Termination Crimp or Solder
Fastening Type Push-Pull
Orientation Keyed
Ingress Protection IP66/67/68 - Dust Tight, Water Resistant, Waterproof
Shell Material, Finish Copper Alloy, Nickel Plated, Electroless
Contact Finish Gold
Features Shielded
Voltage Rating 125VAC/DC
Current Rating 10A
Win Source Part Number 1094759-HS2P2F20
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian HS2P2F20 CAD Model

Description

The Switchcraft Inc. HS2P2F20 is a high-quality electronic component that is designed to meet the needs of various industrial applications.

  • Current Rating: 10A
  • Voltage Rating: 125VAC/DC
  • Shielded: Yes
  • Contact Finish: Gold
  • Ingress Protection: IP66/67/68
  • Mounting Type: Panel Mount
  • Temperature Range: -40°C to 105°C
  • Supply and Demand: Sufficient
