Same model may have multiple batches, images only for reference.

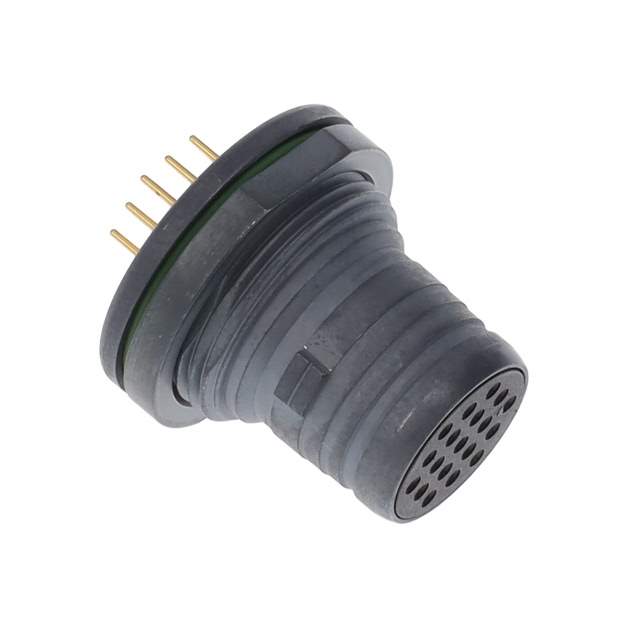

SCE2-B-76A08-19SN-001 Real Image
Same model may have multiple batches, images only for reference.

SCE2-B-76A08-19SN-001

Part No SCE2-B-76A08-19SN-001
Manufacturer Amphenol
Catalog Circular Connectors
Description CONN PLUG FMALE 19POS GOLD SLDR / 19 Position Circular Connector Plug, Female Sockets Solder
Datasheet
SCE2-B-76A08-19SN-001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Amphenol Limited
Series Terrapin
Package Bag
Connector Type Plug, Female Sockets
Number of Positions 19
Shell Size - Insert 8-19
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Front Side Nut
Termination Solder
Fastening Type Push-Pull
Orientation N (Normal)
Primary Material Metal
Shell Material Brass
Shell Finish Black
Contact Finish - Mating Gold
Color Black
Ingress Protection IP68 - Dust Tight, Waterproof
Shielding Unshielded
Current Rating (Amps) 1.5A, 3A, 7.5A
Voltage Rating 400VAC
Temperature Range - Operating -55°C ~ 125°C
Contact Material Copper Alloy
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Applications Audio, Communication Systems, Military
Base Product Number SCE2-B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Names SCE2B76A0819SN001,623-SCE2-B-76A08-19SN-001
Standard Package 1
Win Source Part Number 1094626-SCE2-B-76A08-19SN-001
Ultra Librarian 3D Model Ultra Librarian SCE2-B-76A08-19SN-001 CAD Model

Description

The SCE2-B-76A08-19SN-001 is a circular connector from Amphenol Limited.

  • Positions: 19 positions
  • Applications: Audio, communication systems, and military applications
  • Voltage Rating: 400VAC
  • Current Rating: Up to 7.5A
  • Features: Dust tight and waterproof
  • Ingress Protection: IP68
  • Benefit: Reliable and cost-effective solution for circular connector applications
