Products specifications Report Issue?

Category Connectors, Interconnects>Barrel - Power Connectors
Mfr Switchcraft Inc.
Package Bulk
Connector Type Plug
Gender Female
Industry Recognized Mating Diameter 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter 0.083" (2.10mm ID), 0.217" (5.50mm OD)
Number of Positions/Contacts 2 Conductors, 2 Contacts
Internal Switch(s) Does Not Contain Switch
Mounting Type Free Hanging (In-Line)
Termination Solder Eyelet(s)
Shielding Unshielded
Features Thread Lock
Insulation Color Red
Current Rating (Amps) 5 A
Contact Material - Plating Tin
Body Material Brass
Includes 2 pcs - 1 Connector, 1 Handle
Housing Material Thermoplastic
Contact Material Brass
Body Color Silver, Red
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Names 765K-ND,SC1909
Standard Package 100
Win Source Part Number 1118843-765K
Ultra Librarian 3D Model Ultra Librarian 765K CAD Model

Description

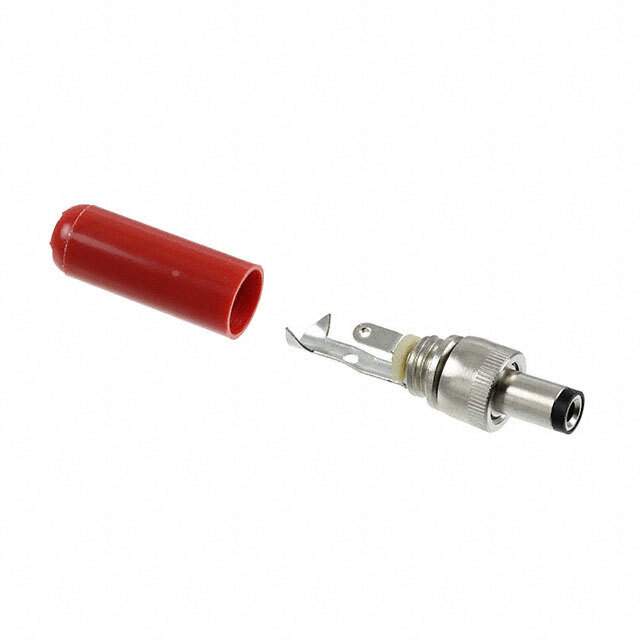

The 765K is a female power connector manufactured by Switchcraft Inc.

  • Conductors: Two
  • Contacts: Two
  • Mounting: Free-Hanging (In-Line)
  • Termination: Thread Lock and Solder Eyelet(s)
  • Housing Material: Thermoplastic
  • Contact Material: Brass with Tin Plating
  • Current Rating: 5A
  • Applications: Power Supply and Audio
  • Package: One connector and one handle
