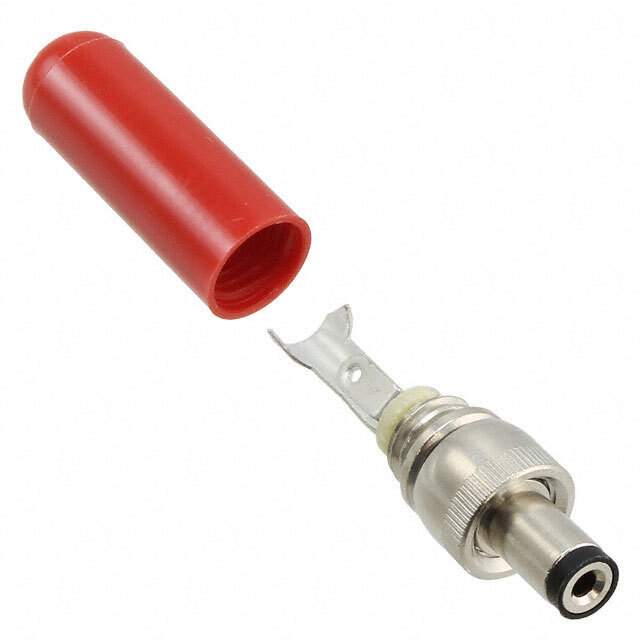

The Switchcraft Inc. 1294266-S765K is a female plug connector with a brass contact material and a housing material made of thermoplastic.

• Contact Material: Brass
• Housing Material: Thermoplastic
• Material Flammability Rating: -
• Ingress Protection: -
• Features: Cable clamp and thread lock
• Termination: Solder eyelet(s)
• Industry-Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
• Current Rating: 5 A
• Standard Package: 100
• Shielding: Unshielded
• Internal Switches: Does not contain internal switches
• Package Includes: 2 pieces, 1 connector and 1 handle
• Color: Silver and red
• Actual Diameter: 0.083" (2.10mm ID) and 0.217" (5.50mm OD)
• Mounting Type: Free hanging (in-line)
• Mounting Feature: No mounting feature
