Same model may have multiple batches, images only for reference.

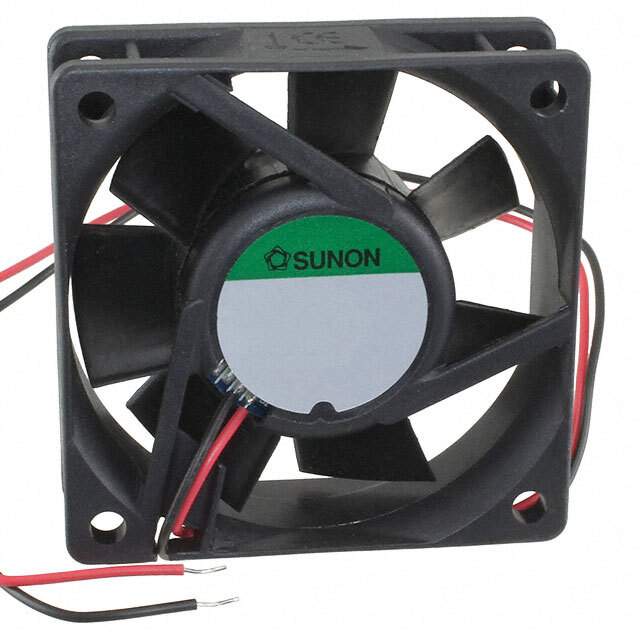

PE60201B1-000U-A99 Real Image
Same model may have multiple batches, images only for reference.

PE60201B1-000U-A99

Part No PE60201B1-000U-A99
Manufacturer Sunon Fans
Catalog DC Fans
Description FAN AXIAL 60X20MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 27.5 CFM (0.770m³/min) 2 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Sunon Fans
Series MagLev® PE
Package Box
Voltage - Rated 12VDC
Dimension Square - 60mm L x 60mm H
Width 20.00mm
Air Flow 27.5 CFM (0.770m³/min)
Static Pressure 0.280 in H2O (69.7 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Auto Restart
Noise 39.0dB(A)
Power (Watts) 2.3 W
RPM 5000 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CUR, TUV, UL
Weight 0.115 lb (52.16 g)
Current Rating (Amps) 0.192A
Voltage Range 6 ~ 13.8VDC
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number PE60201B1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names PE60201B1-000U-A99-ND,259-1747
Standard Package 1
Win Source Part Number 1123897-PE60201B1-000U-A99
Ultra Librarian 3D Model Ultra Librarian PE60201B1-000U-A99 CAD Model

Description

The Sunon Fans MagLev® PE series is a DC brushless fan with a voltage - rated of 12VDC and a power (watts) of 2.3 W.

  • Lifetime @ Temp.: 70000 Hrs @ 40°C
  • Weight: 0.115 lb (52.16 g)
  • Voltage Range: 6 ~ 13.8VDC
  • Width: 20.00mm
  • Air Flow: 27.5 CFM (0.770m³/min)
  • Static Pressure: 0.280 in H2O (69.7 Pa)
  • Bearing Type: Ball
  • Fan Type: Tubeaxial
  • Noise: 39.0dB(A)
  • RPM: 5000 RPM
  • Material - Frame and Blade: Polybutylene Terephthalate (PBT)
  • Temperature Range - Operating: 14 ~ 158°F (-10 ~ 70°C)
  • Dimension: Square - 60mm L x 60mm H
  • Mfr: Sunon Fans
