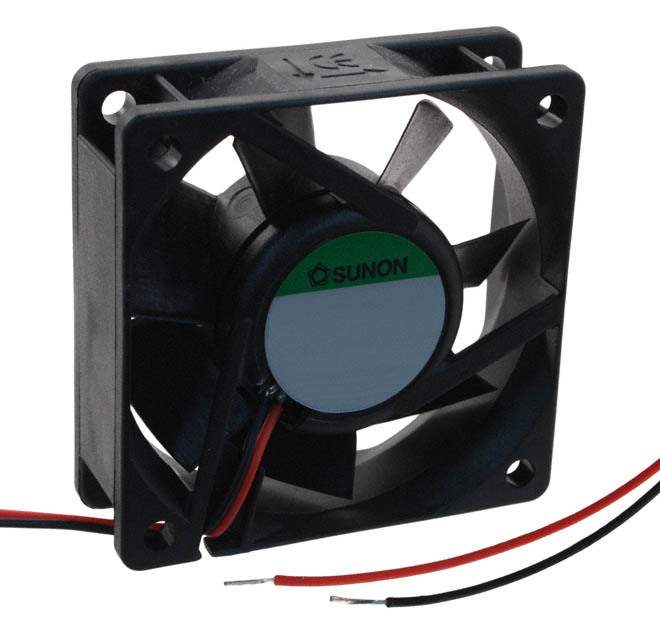

PMD2406PKB1-A.(2).GN Real Image
Same model may have multiple batches, images only for reference.

PMD2406PKB1-A.(2).GN

Part No PMD2406PKB1-A.(2).GN
Manufacturer Sunon Fans
Catalog DC Fans
Description DC Fan Ball Bearing 24V 0.122A 2.9W 5000RPM 27.5CFM 39dB Flange Mount / FAN AXIAL 60X20MM 24VDC WIRE
Datasheet
PMD2406PKB1-A.(2).GN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Sunon Fans
Series MagLev
Voltage Rating DC 24VDC
Dimension Square - 60mm L x 60mm H
Width 20.00mm
Air Flow 27.5 CFM (0.779m3/min)
Static Pressure 0.280 in H2O (69.7 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Noise 39 dB(A)
Power (Watts) 2.90W
RPM 5000 RPM
Termination 2 Wire Leads
Operating Temperature Range 14 ~ 158°F (-10 ~ 70°C)
Approvals CE, CUR, TUV, UL
Weight 0.121 lb (54.88g)
Current Rating 0.120A
Voltage Range 10 ~ 27.6VDC
Win Source Part Number 788383-PMD2406PKB1-A.(2).GN
Popularity Medium
Supply and Demand Status Limited
Family Name PMD
Introduction Date November 19, 2007
ECCN EAR99
Country of Origin China, Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PMD2406PKB1-A.(2).GN CAD Model

Description

The PMD2406PKB1-A.(2).GN from Sunon Fans is a fan.

  • Bearing Type: Ball
  • Voltage Range: 10 ~ 27.6VDC
  • Width: 20.00mm
  • Dimensions: Square - 60mm L x 60mm H
  • Air Flow: 27.5 CFM (0.779m3/min)
  • Static Pressure: 0.280 in H2O (69.7 Pa)
  • Noise Level: 39 dB(A)
  • RPM: 5000
  • Certifications: CE, CUR, TUV, UL
