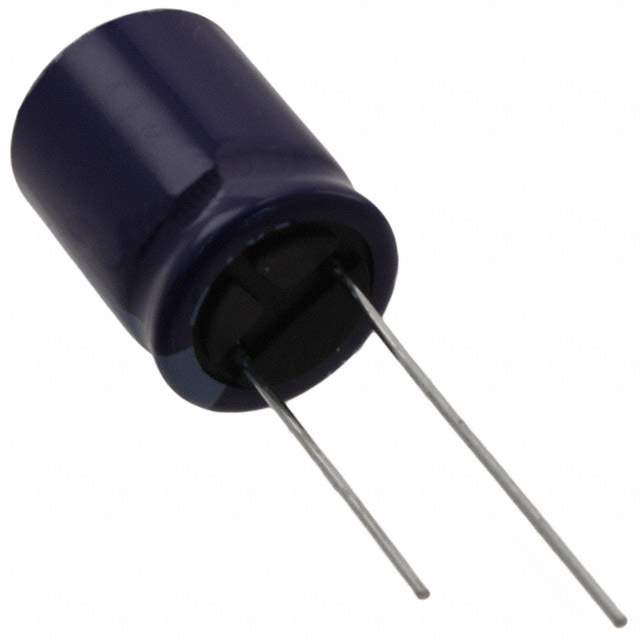

ELXZ630ELL471ML20S Real Image
Same model may have multiple batches, images only for reference.

ELXZ630ELL471ML20S

Part No ELXZ630ELL471ML20S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description Cap Aluminum Lytic 470uF 63V 20%( 16 X 20mm) Radial 7.5mm 1770mA 8000h 105C Automotive Bulk
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 470 µF
Mounting SMD (SMT)
Case / Package Radial
Diameter 16 mm
Dielectric Material Aluminium
ESR (Equivalent Series Resistance) 59 mΩ
Height 20 mm
Height - Seated (Max) 19.9898 mm
Impedance 59 mΩ
Lead Diameter 800 µm
Lead Free Yes
Lead Pitch 7.5 mm
Length 20 mm
Life (Hours) 8000 hours
Maximum Operating Temperature 105 °C
Min Operating Temperature -55 °C
Mount Through Hole
Packaging Bulk
REACH SVHC Unknown
Ripple Current 1.77 A
RoHS Compliant
Termination Radial
Tolerance 20 %
Voltage Rating 63 V
Voltage Rating (DC) 63 V
Win Source Part Number 1022068-ELXZ630ELL471ML20S
Categories Aluminum Capacitors
Manufacturer United Chemi-Con
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian ELXZ630ELL471ML20S CAD Model

Description

The United Chemi-Con capacitor is an electronic component designed for use in electronic circuits that require energy storage.

  • Win Source Part Number: 1022068-ELXZ630ELL471ML20S
  • Category: Aluminum Capacitors
  • Capacitance: 470 μF
  • Voltage Rating: 63V
  • Tolerance: 20%
  • Impedance: 59 mΩ
  • Maximum Temperature: 105°C
  • Lead-Free: lead-free
  • Mounting: SMD (SMT) technology
  • RoHS Compliant: RoHS
