Overview of the VNH5050ATR Motor Driver

The VNH5050ATR is a high-power, full-bridge motor driver integrated circuit (IC) designed and manufactured by STMicroelectronics. This robust component is specifically engineered to deliver efficient and reliable control for a wide range of automotive-grade applications. It is particularly suitable for driving inductive loads such as DC motors, offering a simplified solution for the automotive industry and beyond.

Key Features

• High Output Current Capability: The VNH5050ATR is capable of delivering a continuous current of up to 30A, making it an excellent choice for high-power applications.
• Wide Voltage Range: It operates over a broad supply voltage range from 5.5V to 36V, providing versatility in various electrical environments.
• Integrated Diagnostics: The device includes smart diagnostic features that provide feedback on the status of the motor, such as thermal shutdown, overvoltage shutdown, and load current monitoring. This helps in ensuring the safety and longevity of the application.
• Protection Features: The VNH5050ATR incorporates several protection mechanisms, including under-voltage shutdown, over-temperature shutdown, and over-current protection, which contribute to the reliable operation of the motor driver.

Applications

The versatility of the VNH5050ATR makes it suitable for a variety of applications. These include, but are not limited to:

• Automotive applications such as window lifters, seat adjusters, and HVAC blowers.
• Industrial applications involving high-power motor control.
• Robotics and automation systems requiring robust motor drivers.

Package and Quality

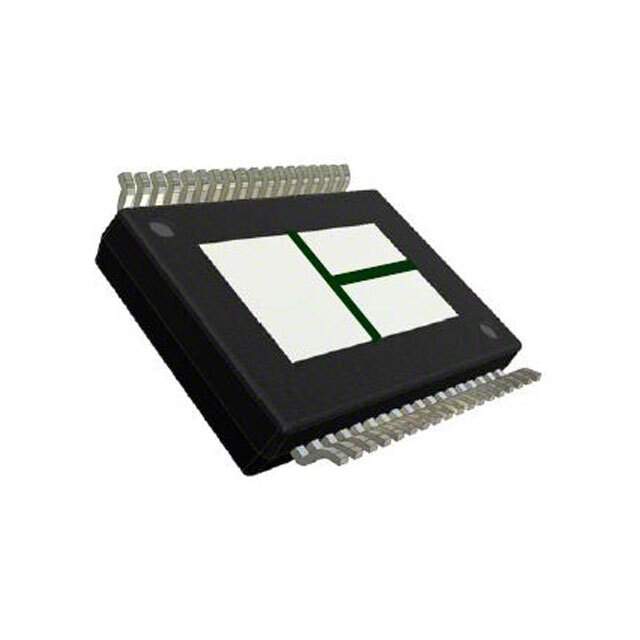

The VNH5050ATR is housed in a compact PowerSSO-24 package, which is designed to optimize the thermal performance and minimize the PCB footprint. STMicroelectronics ensures high-quality standards, with the VNH5050ATR meeting automotive qualification criteria, which underscores its reliability and performance in demanding environments.

With its combination of high-power capability, comprehensive diagnostic features, and wide range of applications, the VNH5050ATR stands out as a top-tier choice for designers looking for an efficient and durable motor driver solution.
