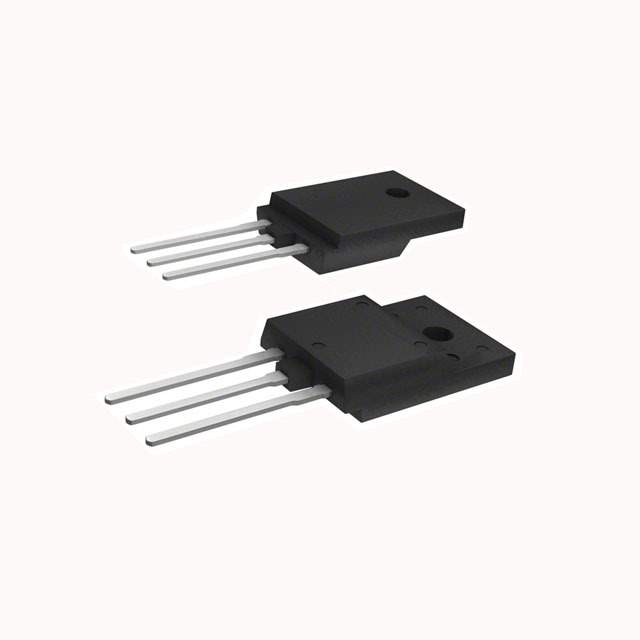

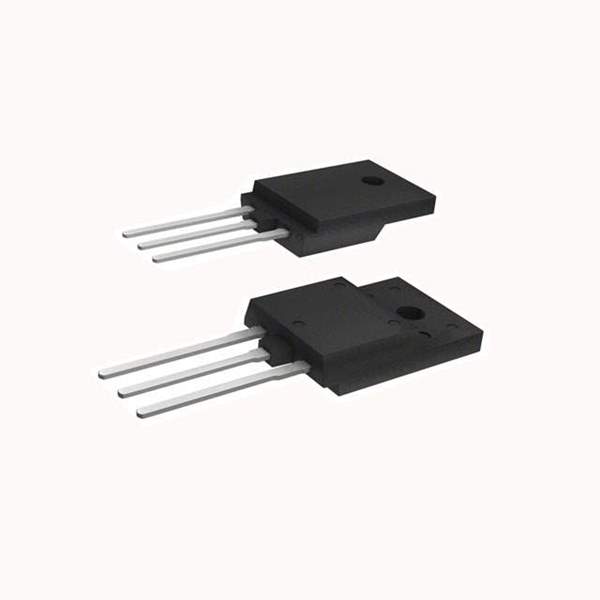

2SC4300 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Transistor Type NPN
Current - Collector (Ic) (Maximum) 5A
Voltage - Collector Emitter Breakdown (Maximum) 800V
Vce Saturation (Maximum) @ Ib, Ic 500mV @ 400mA, 2A
Current - Collector Cutoff (Maximum) 100μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 10 @ 2A, 4V
Power - Max 75W
Frequency - Transition 6MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-3P-3 Full Pack
Manufacturer Package TO-3PF
Win Source Part Number 762648-2SC4300
Family Name 2SC4300
Introduction Date June 18, 2001
ECCN EAR99
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2SC4300 CAD Model

Description

The 2SC4300 transistor from Sanken is a high-performance NPN transistor designed for use in discrete semiconductor products. Sanken's 2SC4300 transistor is a high-performance NPN transistor designed for use in discrete semiconductor products.

  • Maximum Power: 75W
  • Maximum Frequency Transition: 6MHz
  • Maximum Collector-Emitter Breakdown Voltage: 800V
  • Maximum Collector Current: 5A
  • Minimum DC Current Gain (hFE): 10 @ 2A and 4V
  • Packaging: TO-3P-3 full pack
  • Mounting: Through-hole
  • Temperature Range: -55°C to 150°C (TJ)
  • Estimated EOL date: 2024
