STMicroelectronics TDA7567PDTR Multipower BCD Technology Quad Bridge Car Radio Amplifier

The TDA7567PDTR from STMicroelectronics is an advanced audio amplifier designed for high-quality sound systems, particularly in automotive applications. This quad bridge car radio amplifier incorporates STMicroelectronics' proprietary Multipower BCD technology, which allows for the integration of bipolar, CMOS, and DMOS components on the same chip. This integration ensures high efficiency, outstanding audio performance, and reliability, making it an ideal choice for car radio manufacturers and automotive audio enthusiasts.

With its flexible quad bridge configuration, the TDA7567PDTR can drive speakers directly and is capable of delivering up to 4 x 50W of continuous power output, ensuring a powerful and immersive audio experience. The device operates over a wide supply voltage range, from 8V to 18V, which makes it versatile for use in various car models with different electrical systems.

One of the key features of the TDA7567PDTR is its built-in diagnostic capabilities. It includes a diagnostic system that can detect and report faults such as short circuits to ground, to the battery, and across the load, as well as thermal overloading. This feature helps to protect the amplifier and the speakers, enhancing the longevity and safety of the audio system.

The amplifier also boasts a low distortion level, which ensures crystal-clear sound reproduction, and a low output noise level, which minimizes background noise for a better listening experience. Additionally, the TDA7567PDTR incorporates a standby function, which reduces power consumption when the audio system is not in use, contributing to the overall energy efficiency of the vehicle.

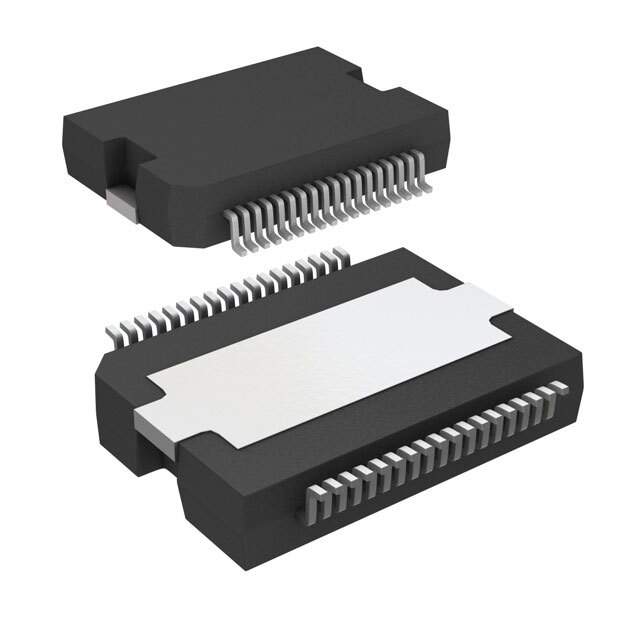

Designed with the end-user in mind, the TDA7567PDTR is housed in a PowerSSO-36 package, which aids in heat dissipation and makes it easier to mount onto a printed circuit board. This package, combined with the amplifier's minimized external component requirement, simplifies the design and integration process for audio system manufacturers.

In summary, the TDA7567PDTR from STMicroelectronics is a robust and feature-rich audio amplifier that delivers high-quality sound and ensures reliable performance for automotive audio systems. With its advanced technology and diagnostic features, it represents a smart choice for those looking to enhance the audio experience in their vehicles.
