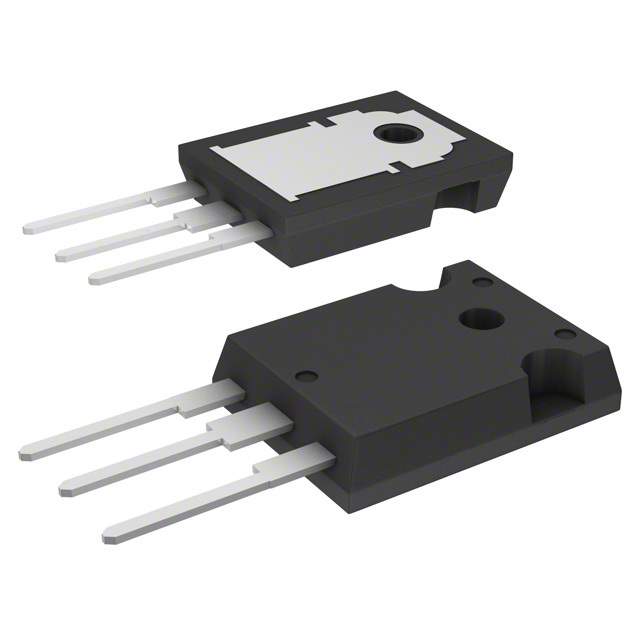

The STW55NM60N is a high-performance N-channel 600V, 55A MDmesh™ V Power MOSFET designed by STMicroelectronics. This device is built on an innovative proprietary vertical process technology, which is tailored to deliver the best in class on-resistance (R_DS(on)) and switching performance. The unique structure of the MOSFET ensures an excellent R_DS(on) x area figure of merit, making it suitable for the most demanding high-efficiency applications.

Key Features

• Voltage Rating: The STW55NM60N operates at a drain-source voltage (V_DS) of 600V, providing ample headroom for high-voltage applications.
• Current Capacity: With a continuous drain current (I_D) of 55A, this MOSFET can handle significant power, suitable for a wide range of applications.
• Low On-Resistance: The on-resistance is extremely low, with a typical R_DS(on) of 0.036 Ω, which enhances overall efficiency by minimizing conduction losses.
• Fast Switching Performance: The fast switching characteristics of the STW55NM60N make it ideal for high-frequency power conversion systems.
• 100% Avalanche Tested: Ensuring reliability and robustness, each device is subjected to an avalanche test, guaranteeing safe operation under extreme conditions.

Applications

The STW55NM60N is designed for a broad range of applications, including:

• Switch Mode Power Supplies (SMPS)
• Uninterruptible Power Supplies (UPS)
• High Performance Drives
• Power Factor Correction (PFC) circuits
• LED Lighting solutions

Environmental and Quality Certifications

STMicroelectronics is committed to environmental sustainability and quality. The STW55NM60N complies with various industry standards and certifications:

• RoHS compliant
• Qualified to industrial standards for reliability
• Meets STMicroelectronics' standards for environmental sustainability

The STW55NM60N from STMicroelectronics represents a blend of high performance, efficiency, and reliability, making it an excellent choice for designers looking to improve their power management systems.
