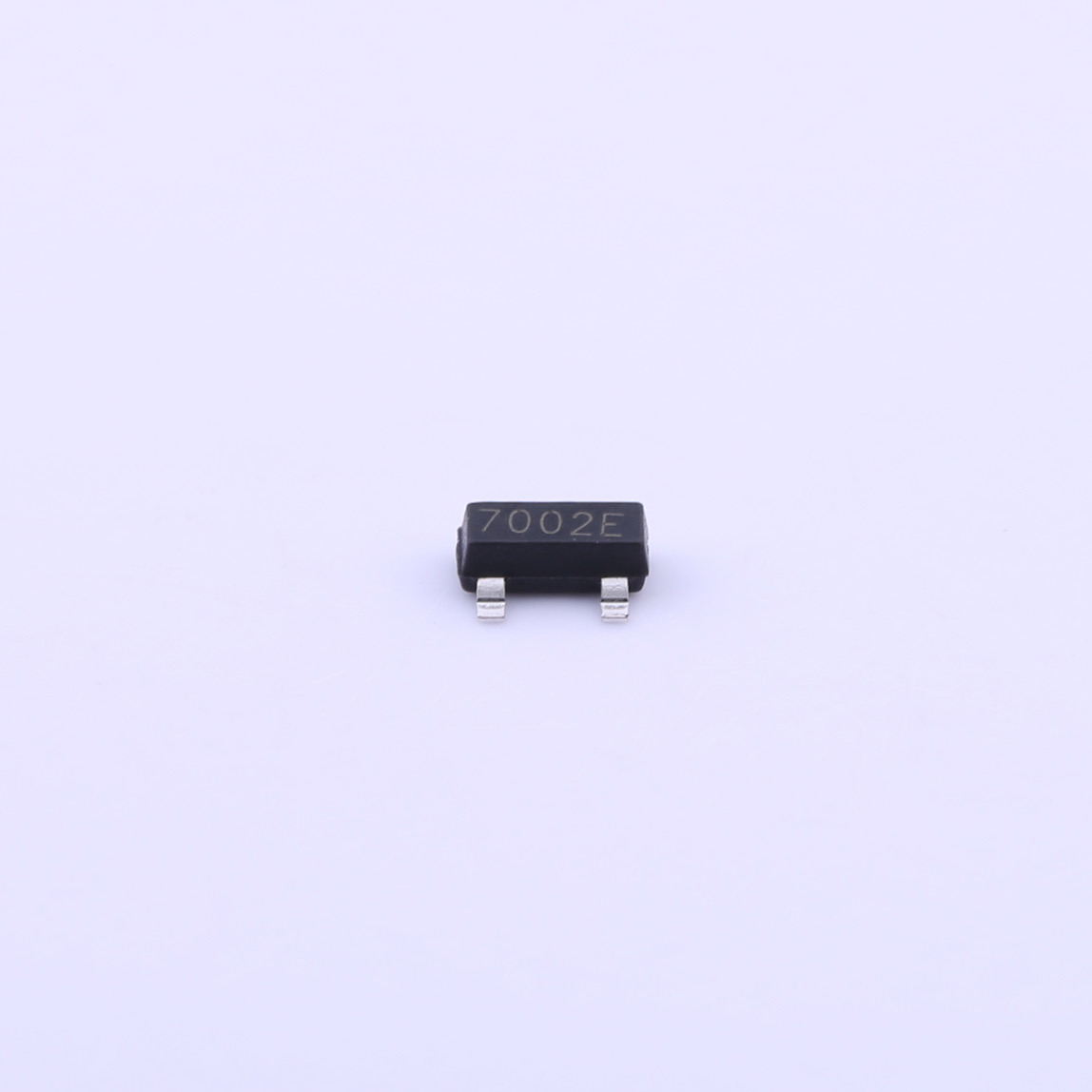

2N7002E ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet

Same model may have multiple batches, images only for reference.

2N7002E ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet

Same model may have multiple batches, images only for reference.

2N7002E

Get a Quote

Part No	2N7002E
Manufacturer	ShenZhen SlkorMicro Semicon Co. Ltd
Catalog	FETs - Single
Description	60V 300mA 3Ω@10V 225mW 1V@250uA 1 N-channel SOT-23
Datasheet	2N7002E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1330069-2N7002E
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	300mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3Ohm @ 100mA, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.8 nC @ 4.5 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	40 pF @ 10 V
Power Dissipation (Max)	350mW (Ta)
Operating Temperature	150°C (TJ)
Grade	-
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3 (TO-236)
Package / Case	TO-236-3, SC-59, SOT-23-3
Package	Bulk
Current - Continuous Drain (Id) @ 25°C	340mA
Rds On (Max) @ Id, Vgs	5 Ohm @ 300mA, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.6 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds	21 pF @ 5 V
Product Status	Active
Current - Continuous Drain (Id) @ 25°C	300mA
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	3 Ohm @ 500mA, 10V
Power Dissipation (Max)	225mW (Ta)
Supplier Device Package	SOT-23
Ultra Librarian 3D Model	Ultra Librarian 2N7002E CAD Model
