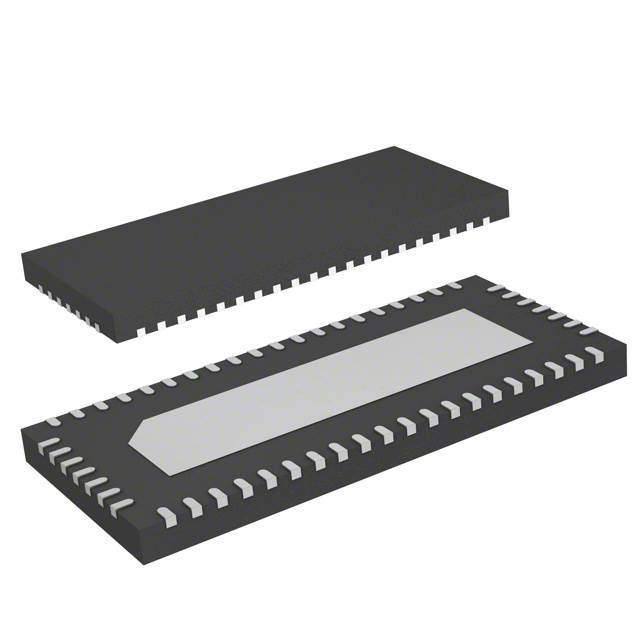

The STMUX1000LQTR from STMicroelectronics is a high-performance, low-voltage, single-chip multiplexer (MUX) that is designed to operate as an interface switch for a variety of data lines, including high-speed USB 2.0, LVDS, HSDI, and other communications standards. This versatile component is housed in a compact QFN-48 package, making it suitable for space-constrained applications.

Key Features

• Wide Voltage Range: The STMUX1000LQTR operates at a wide range of voltages from 1.65V to 3.6V, making it compatible with various logic levels and suitable for battery-operated devices.
• High-Bandwidth Switching: It supports high-bandwidth data switching, which is essential for applications requiring fast data transfer rates such as high-speed USB interfaces.
• Low On-Resistance: The device features low on-resistance, which minimizes signal attenuation and ensures signal integrity during the switching process.
• ESD Protection: Integrated Electrostatic Discharge (ESD) protection circuits safeguard the device from static damage, enhancing its durability and reliability in harsh environments.
• Multiple Configurations: The multiplexer can be configured in various ways, providing design flexibility to meet specific circuit requirements.

Applications

The STMUX1000LQTR is ideal for a wide range of applications that require the routing of high-speed differential or single-ended signals. These include:

• Mobile Phones
• Tablets and Portable Devices
• GPS Systems
• Notebook and Desktop Computers
• Set-Top Boxes
• USB Hubs and Peripherals

Conclusion

With its robust design, flexible configuration options, and high-speed data handling capabilities, the STMUX1000LQTR is an excellent choice for designers looking to create efficient, high-performance electronic systems. STMicroelectronics' commitment to quality ensures that this multiplexer will provide reliable service over its operational lifespan, making it a smart investment for any application where data switching is a critical function.
