Overview of STMPS2151STR from STMicroelectronics

The STMPS2151STR is a state-of-the-art, single channel, enhanced integrated power switch designed by STMicroelectronics for USB applications. This advanced product is tailored to provide overcurrent and thermal protection for applications that demand reliable power management. Its compact design and robust feature set make it an ideal choice for a wide range of USB power distribution systems.

Key Features

• Current Limiting: The STMPS2151STR offers precise current limiting to protect the USB port from overcurrent conditions. This feature ensures the safety and longevity of both the power switch and the downstream devices it protects.
• Thermal Shutdown Protection: With an integrated thermal shutdown mechanism, the device automatically turns off in the event of excessive temperature, thereby preventing thermal damage.
• High Switching Capability: This power switch is capable of handling continuous currents up to 500mA, which is compliant with USB 2.0 power specifications.
• Low Power Consumption: The STMPS2151STR is designed for energy efficiency, with a very low quiescent current and standby current, making it suitable for battery-powered applications.
• Fast Overcurrent Response: The device responds quickly to overcurrent conditions, providing rapid protection for sensitive components.

Applications

The STMPS2151STR is versatile and can be used in various applications, including:

• USB hubs, docks, and ports
• Battery chargers
• Portable electronic devices
• Peripheral power management

Product Specifications

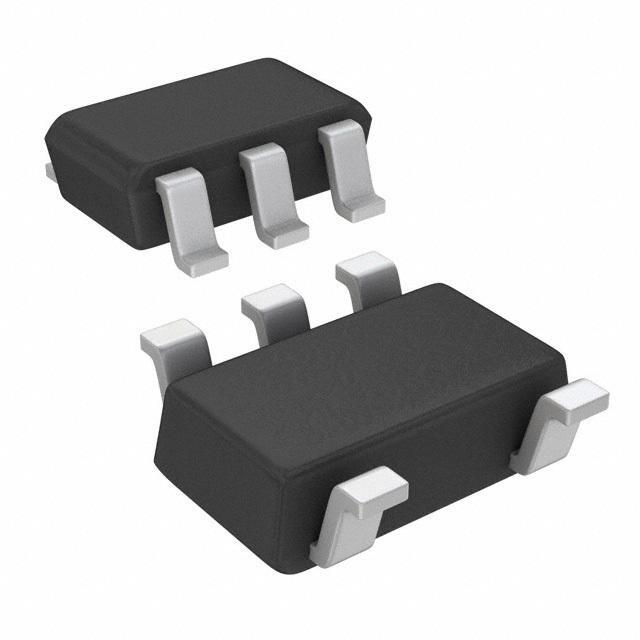

Encased in a small-outline package, the STMPS2151STR is optimized for space-constrained applications. It operates over a broad voltage range and features built-in soft-start functionality to minimize inrush current at startup. Its active high enable input allows easy integration into system-level power control schemes.

With its comprehensive protection features and efficient performance, the STMPS2151STR from STMicroelectronics represents a reliable solution for USB power distribution and management, ensuring safe operation and extending the life of end-user devices.
