Products specifications

Category RF and Wireless - RF Transceiver ICs
Mfr STMicroelectronics
Series STM32WB
Package Tray
Product Status Active
Type TxRx + MCU
RF Family/Standard 802.15.4, Bluetooth
Protocol Bluetooth v5.3, Thread, Zigbee®
Modulation GFSK
Frequency 2.405GHz ~ 2.48GHz
Data Rate (Max) 2Mbps
Power - Output 6dBm
Sensitivity -100dBm
Memory Size 512kB Flash, 256kB SRAM
Serial Interfaces ADC, I²C, SPI, UART, USART, USB
GPIO 72
Voltage - Supply 1.71V ~ 3.6V
Current - Receiving 4.5mA ~ 7.9mA
Current - Transmitting 5.2mA ~ 12.7mA
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount

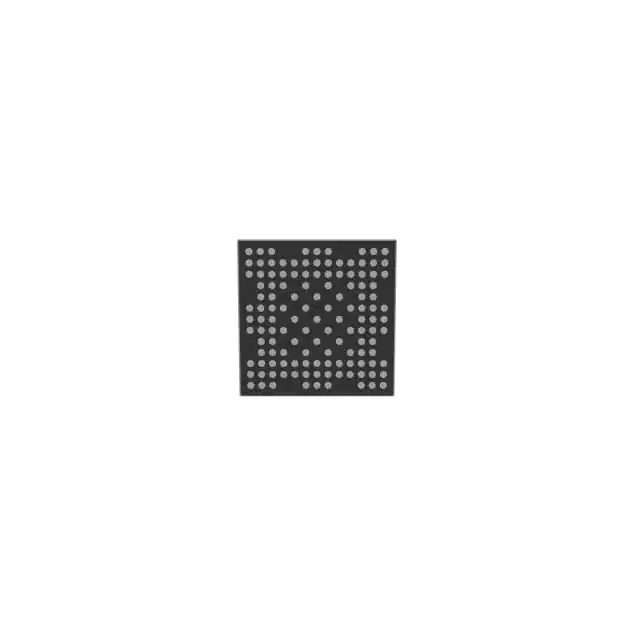

Package / Case 129-UFBGA
Supplier Device Package 129-UFBGA (7x7)
Base Product Number STM32
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 1368707-STM32WB55VEQ6
Ultra Librarian 3D Model Ultra Librarian STM32WB55VEQ6 CAD Model

Description

The STM32WB55VEQ6 is a cutting-edge microcontroller product from STMicroelectronics, designed to cater to the growing needs of complex wireless applications. As part of the STM32WB series, this multi-protocol wireless and ultra-low-power device integrates a 2.4 GHz RF transceiver supporting Bluetooth® 5.0 and IEEE 802.15.4-2011 protocols, making it ideal for a wide range of Internet of Things (IoT) applications.

Key Features

  • Powerful ARM Cortex Cores: The STM32WB55VEQ6 is built around a dual-core architecture featuring an ARM Cortex-M4 core for application processing and an ARM Cortex-M0+ core dedicated to radio and security tasks, providing an efficient division of labor within the microcontroller.
  • Advanced Wireless Support: With its built-in transceiver, the device supports Bluetooth® Low Energy 5.0 and a range of other wireless standards, ensuring broad connectivity options for various wireless communication needs.
  • Energy Efficiency: Designed for energy-conscious applications, the STM32WB55VEQ6 includes multiple power-saving modes and features that extend battery life in portable and wearable electronics.
  • Rich Set of Peripherals: The microcontroller comes with an extensive set of peripherals, including USB, LCD, analog, audio, and more, to support complex and feature-rich applications.
  • Security Features: Security is a priority in IoT applications, and the STM32WB55VEQ6 addresses this with hardware encryption, a random number generator, and sector protection against read/write operations for enhanced security.
  • Development Ecosystem: STMicroelectronics provides a comprehensive development ecosystem, including software libraries, development boards, and a supportive community, to assist developers in rapid prototyping and product development.

Applications

The STM32WB55VEQ6 is versatile and can be used in a range of applications such as smart home devices, industrial wireless control, wearable devices, wireless sensors, and healthcare monitoring systems. Its robust feature set and wireless capabilities make it a go-to solution for developers looking to create reliable and sophisticated wireless products.
