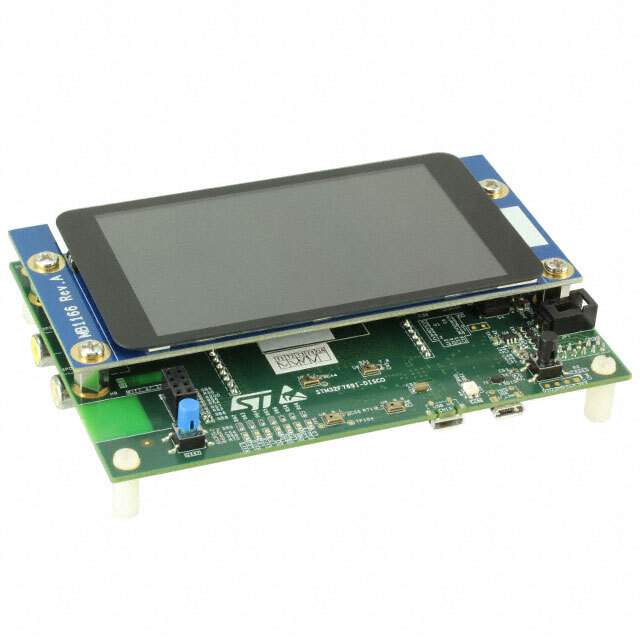

STM32F769I-DISCO Discovery Kit

The STM32F769I-DISCO Discovery Kit from STMicroelectronics is a comprehensive development tool that enables users to easily explore the capabilities of the STM32F7 Series microcontrollers. The STM32F7 Series is known for its high performance, DSP, and FPU instructions, making it ideal for a wide range of applications.

Key Features:

• Microcontroller: STM32F769NIH6 high-performance and DSP with FPU, ARM Cortex-M7 MCU with 2 Mbytes of Flash memory and 564 Kbytes of RAM.
• Display: 4-inch QVGA TFT LCD with MIPI-DSI interface and capacitive touch panel.
• Connectivity: Ethernet compliant with IEEE-802.3-2002, Wi-Fi or extensible to other communication interfaces via the daughterboard.
• Audio: SAI audio codec, two audio line jacks, one for input and one for output, stereo speaker outputs, four ST MEMS microphones on DFSDM inputs, and one 3.5 mm audio jack.
• On-board Memory: 128-Mbit SDRAM, 512-Mbit Quad-SPI Flash.
• USB OTG: High-speed USB OTG (Micro-AB connector).
• Expansion: Arduino™ Uno V3 connectors and STMod+ connectors for expansion with daughterboards.
• On-board ST-LINK/V2-1: Debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port.
• Comprehensive Free Software: HAL library including a variety of software examples.
• Sensors: Gyroscope, digital microphone, and ambient light sensor.

This Discovery kit enables a wide diversity of applications, taking benefit from audio, multi-sensor support, graphics, security, video, and high-speed connectivity features. The integrated development environment (IDE) for the STM32F769I-DISCO kit includes numerous examples and demos that leverage the on-board features and peripherals, allowing for a quick start in developing applications ranging from simple to complex.

Whether you are a professional engineer, a student, or a hobbyist, the STM32F769I-DISCO Discovery Kit is an affordable and flexible way to discover the STM32F7 Series and start developing your applications with the state-of-the-art STMicroelectronics hardware.
