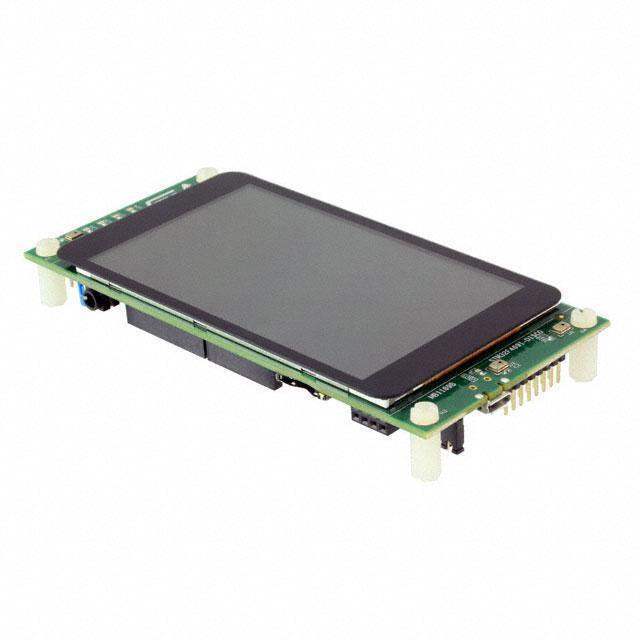

The STM32F469I-DISCO Discovery Kit from STMicroelectronics is a feature-rich development platform that enables rapid prototyping and development for applications requiring high-performance graphics, audio, and real-time capabilities. This kit is designed around the STM32F469NIH6 microcontroller, which is based on an ARM Cortex-M4 core with a floating-point unit (FPU). It provides a perfect environment for exploring the capabilities of the STM32F4 series microcontrollers.
Key Features
- Advanced Microcontroller: At the heart of the Discovery Kit is the STM32F469NIH6, which operates at frequencies of up to 180 MHz. It includes 2MB of Flash memory and 384KB of RAM, ensuring ample space and speed for complex applications.
- High-Quality Display: The kit includes a 4-inch QVGA TFT LCD display with MIPI-DSI connector and capacitive touch panel, allowing for the creation of visually rich and interactive user interfaces.
- Comprehensive Connectivity: The Discovery Kit offers a range of connectivity options including USB OTG, Ethernet, and various other I/O interfaces for extensive peripheral integration.
- Onboard Audio and MEMS: Integrated audio features with an onboard stereo headphone jack and MEMS microphones enable audio applications such as voice recognition and audio playback.
- Expandable Memory: A microSD card slot is available for additional storage, making it easy to work with large datasets or multimedia files.
- Debugging Features: The Discovery Kit comes with an integrated ST-LINK/V2-1 debugger/programmer, eliminating the need for separate debugging equipment and simplifying the development process.
Applications
With its powerful features, the STM32F469I-DISCO is an ideal platform for developing advanced applications such as:
- Industrial control systems
- Medical equipment
- Home automation
- Complex graphical user interfaces
- Audio and voice processing
The STM32F469I-DISCO Discovery Kit is an invaluable tool for engineers and hobbyists alike who are looking to harness the power of the STM32F4 series microcontrollers in their next project. Its combination of performance, features, and expandability makes it a versatile platform suitable for a wide range of applications.
