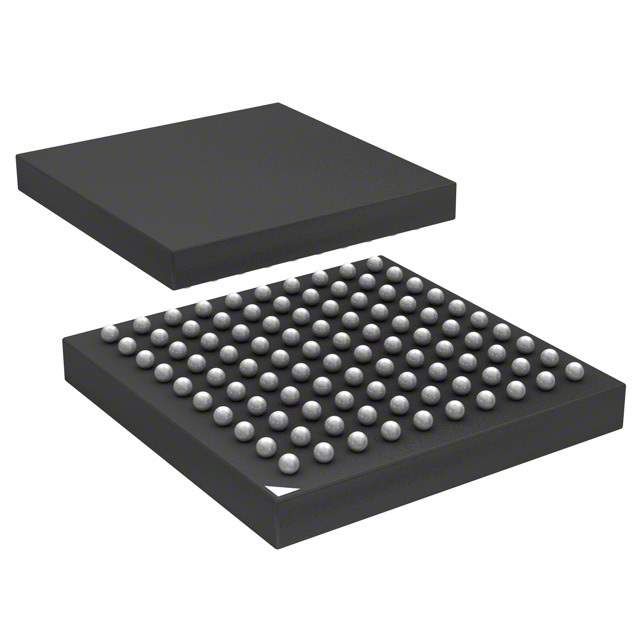

The STM32F103VEH6 is a performance line microcontroller from STMicroelectronics that is part of the widely acclaimed STM32F1 series. This microcontroller is based on the high-performance ARM Cortex-M3 32-bit RISC core operating at a frequency of up to 72 MHz. The STM32F103VEH6 boasts high-speed embedded memories with 512 Kbytes of Flash memory and 64 Kbytes of SRAM, making it an ideal choice for embedded applications requiring a combination of performance, power efficiency, and storage capacity.
With its extensive range of enhanced I/Os and peripherals connected to two APB buses, this microcontroller offers an excellent balance of power consumption and performance. The device features a 12-bit analog-to-digital converter (ADC), multiple general-purpose timers, and advanced-control timers. These features enable the microcontroller to handle a variety of complex tasks, making it suitable for industrial control, medical equipment, and consumer electronics.
The STM32F103VEH6 supports various connectivity options, including USB 2.0 full-speed interface and CAN interfaces, which allow for flexible communication with other devices and systems. Additionally, the microcontroller comes with a range of built-in protections like power-saving modes and a real-time clock, which contribute to the overall reliability and efficiency of the system it powers.
Developers will appreciate the comprehensive set of development tools available for the STM32F103VEH6, including software libraries and hardware development kits. These tools facilitate rapid development and prototyping, ensuring a smooth path from concept to production.
Key Features:
- ARM Cortex-M3 32-bit RISC core operating at a 72 MHz frequency
- 512 Kbytes of Flash memory and 64 Kbytes of SRAM
- High-speed embedded memories (Flash memory up to 1 Mbyte, up to 96 Kbytes of SRAM)
- Flexible static memory controller supporting Compact Flash, SRAM, PSRAM, NOR, and NAND memories
- USB 2.0 full-speed and CAN interfaces
- Multiple power-saving modes for energy efficiency
- 12-bit, 1 µs A/D converters (up to 16 channels)
- Serial wire debug (SWD) & JTAG interfaces
- Comprehensive set of power-saving modes including Stop, Standby, and VBAT modes
Overall, the STM32F103VEH6 from STMicroelectronics is a robust microcontroller option for designers looking to balance performance and power consumption in their next embedded system project.
