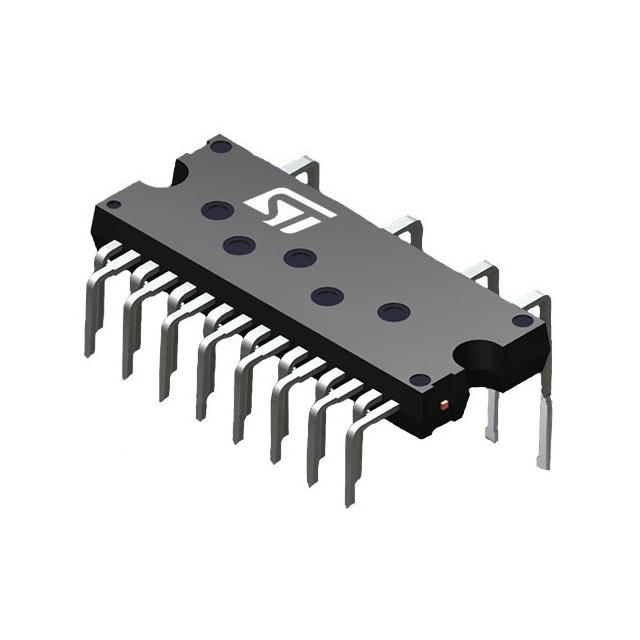

STGIPQ4C60T-HZ - Intelligent Power Module from STMicroelectronics

The STGIPQ4C60T-HZ is a cutting-edge Intelligent Power Module (IPM) designed and manufactured by STMicroelectronics, a global semiconductor leader. This advanced power module is specifically engineered to deliver high-efficiency and reliability in motor drive applications. Its compact design and integrated features make it an ideal choice for a variety of industrial, consumer, and automotive applications where space and power efficiency are critical.

Key Features:

• Integrated Design: The STGIPQ4C60T-HZ combines advanced IGBTs with freewheeling diodes in a single package, which simplifies the design and reduces the overall footprint of the power electronics system.
• High Voltage Rating: With a maximum operating voltage of 600V, this IPM can handle a wide range of applications that require high voltage operation, ensuring versatility across different market segments.
• High Current Capability: The device is capable of delivering up to 15A of continuous collector current (I_C), making it suitable for driving medium-power motors.
• Over-temperature Protection: An integrated temperature sensor provides over-temperature protection, enhancing the safety and longevity of the module.
• Short-circuit Rated IGBTs: The IGBTs within the module are rated for short-circuit, offering robust performance under fault conditions.
• Optimized Switching Characteristics: The module is designed for low switching losses, improving overall system efficiency.
• Isolation: Electrical isolation between the power and control circuits is provided within the module, which is critical for safety and noise immunity.

Applications:

• AC motor drives
• Washing machines
• Refrigerators
• Fans and blowers
• Other home appliances
• Industrial automation systems

The STGIPQ4C60T-HZ is designed to offer a high level of integration, which reduces the complexity and time-to-market for designers working on motor control applications. Its robustness, combined with STMicroelectronics' reputation for quality and performance, makes it a reliable choice for engineers looking to optimize their power management solutions.
