ON Semiconductor FSBB15CH60 Smart Power Module

The ON Semiconductor FSBB15CH60 is an advanced smart power module that combines cutting-edge IGBTs with freewheeling diodes to provide a highly efficient, compact solution for electronic power applications. Designed to simplify the design and manufacturing of motor drive systems, this module is an ideal choice for a wide range of applications, including air conditioners, washing machines, refrigerators, and industrial motors.

At the heart of the FSBB15CH60 lies ON Semiconductor's proprietary IGBT technology, which ensures low conduction and switching losses. This results in superior thermal performance and efficiency, making it a robust choice for high-power applications. The module features a 600V, 15A IGBT inverter bridge, which includes six IGBTs and six free-wheeling diodes configured in a three-phase bridge arrangement.

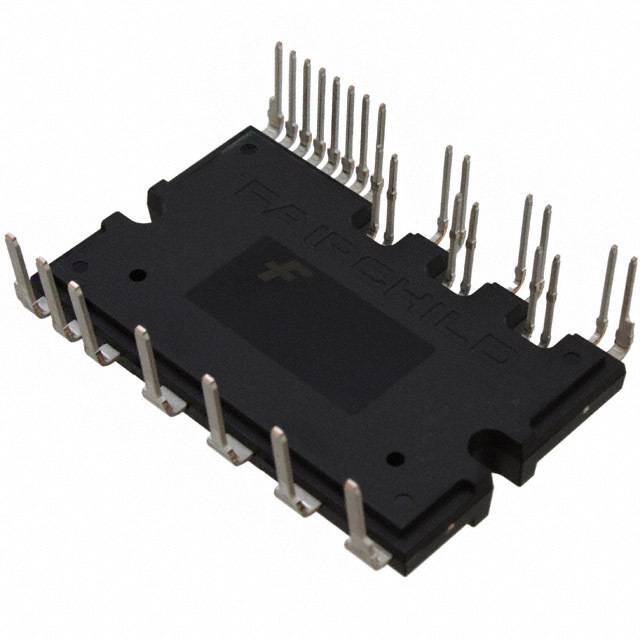

The smart power module is housed in a compact 44.0 mm x 26.8 mm Mini-DIP package, which allows for a reduction in PCB space and overall system size. This makes it particularly attractive for applications where space is at a premium. The FSBB15CH60 also includes built-in features such as under-voltage lockout and over-current protection, enhancing system reliability and safety.

One of the key advantages of the FSBB15CH60 is its ease of use. The module is designed with an integrated bootstrap diode for the high-side drive function, which simplifies circuit design and reduces external component count. Additionally, the module's layout is optimized for excellent electrical performance, minimizing EMI and losses through careful arrangement of the power components.

For designers looking for a power solution that combines performance with practicality, the ON Semiconductor FSBB15CH60 Smart Power Module is an excellent choice. Its integration of advanced IGBT technology, protection features, and a compact form factor make it a versatile and reliable component for any power electronic system.

With ON Semiconductor's commitment to quality and performance, the FSBB15CH60 is not just a component; it's a stepping stone to more efficient, reliable, and compact power electronic designs.
