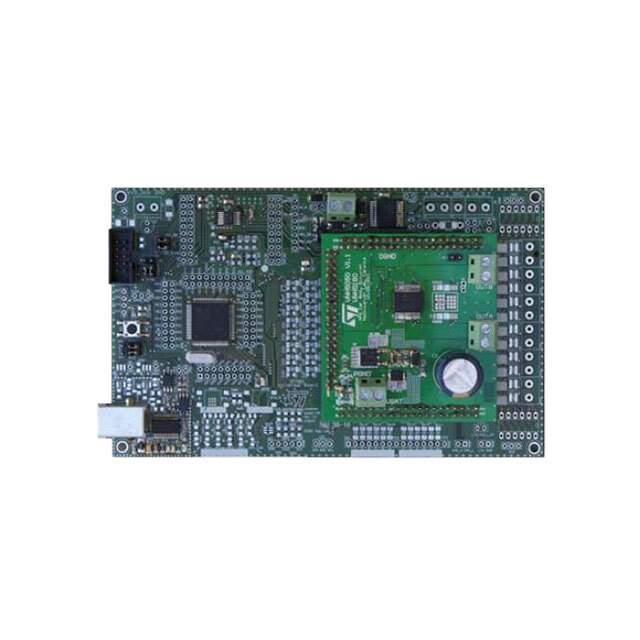

Introducing the STEVAL-VNH5180A from STMicroelectronics

The STEVAL-VNH5180A is an impressive demonstration board from STMicroelectronics, designed to showcase the capabilities of the VNH5180A high-side driver. This product is an ideal solution for automotive applications and is well-suited for driving resistive or inductive loads with one side connected to ground.

Robust Design for Automotive Applications

Constructed with the needs of the automotive industry in mind, the STEVAL-VNH5180A is built to withstand the demanding conditions of vehicular environments. The board features the VNH5180A, an automotive-grade high-side driver that is capable of driving high current loads up to 8 A. With its wide voltage range from 5.5 V to 28 V, this driver is compatible with a variety of automotive systems.

Advanced Protection Features

The VNH5180A comes with a comprehensive set of protection features to ensure the longevity and reliability of the application. These include over-temperature protection, load current limitation, and active VCC clamping, which work together to prevent damage from a wide range of potential fault conditions. Additionally, the board includes under-voltage and over-voltage shutdown, ensuring that the device operates safely within its electrical limits.

Easy-to-use Interface

The user-friendly interface of the STEVAL-VNH5180A allows for straightforward integration into existing systems. The board is equipped with PWM input for control and a diagnostic feedback signal to monitor the status of the driver. This feedback can be critical for implementing fault detection and handling strategies in sophisticated automotive applications.

Flexible and Versatile

Whether you're driving a small DC motor, controlling a solenoid, or powering LED lights, the STEVAL-VNH5180A is versatile enough to handle a range of applications. Its compact size and screw terminal connectors make it easy to install and connect to your load, providing a convenient and efficient solution for your high-side driving needs.

Conclusion

With its robust design, advanced protection features, and ease of use, the STEVAL-VNH5180A from STMicroelectronics is an excellent choice for developers and engineers looking to implement reliable high-side drivers in their automotive applications. Experience the performance and reliability that STMicroelectronics is known for with the STEVAL-VNH5180A demonstration board.
