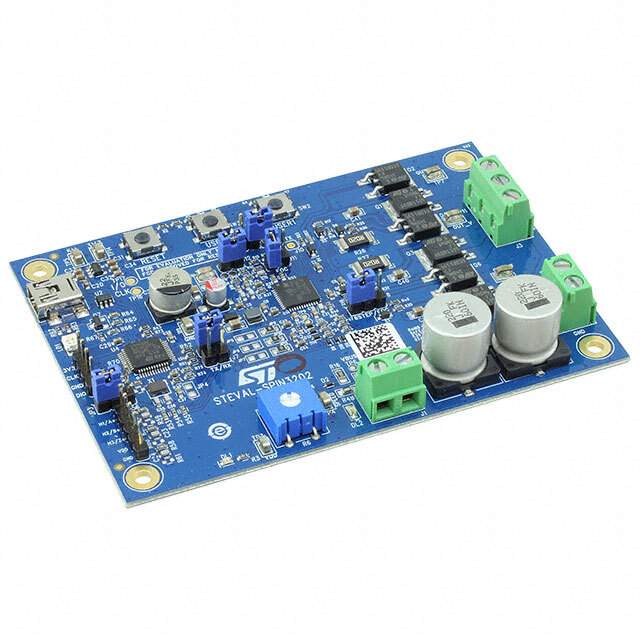

STEVAL-SPIN3202 Advanced BLDC Controller Board

The STEVAL-SPIN3202 is a cutting-edge motor control evaluation board from STMicroelectronics, designed specifically for advanced Brushless DC (BLDC) motor control applications. This sophisticated board is built around the STSPIN32F0A system-in-package, which integrates a 3-phase BLDC controller and a 32-bit ARM® Cortex®-M0 microcontroller, making it an ideal solution for high-performance, compact motor driving systems.

The STEVAL-SPIN3202 is capable of driving motors with voltage ranges from 7 to 45 V and delivering up to 15 A of current, catering to a wide array of applications including drones, power tools, fans, pumps, and many other industrial and consumer devices that require precise and efficient motor control.

Key features of the STEVAL-SPIN3202 include:

• Integrated op-amp for advanced current sensing
• Overcurrent and overtemperature protection
• 12 V and 3.3 V voltage regulators
• Embedded bootloader for microcontroller firmware updates
• User-friendly interfaces including SWD, USART, and hall/encoder motor sensor inputs

Developers will appreciate the board's comprehensive development ecosystem that supports a wide range of development tools and software, including the STSW-SPIN3202 firmware package which provides motor control algorithms and a dedicated graphical user interface for parameter tuning and control. This makes it easier for engineers to kick-start their motor control projects and to rapidly move from concept to prototype.

The STEVAL-SPIN3202 also offers flexibility in connectivity with options for Hall sensors, encoders, and potentiometers, providing the necessary inputs for precise speed and position control of the motor. Additionally, the board supports both six-step and field-oriented control (FOC) algorithms, enabling optimal efficiency and performance of the motor.

Whether you are working on a professional industrial design or an enthusiast's project, the STEVAL-SPIN3202 from STMicroelectronics is a robust and versatile solution that will help you achieve high-precision motor control with ease.
