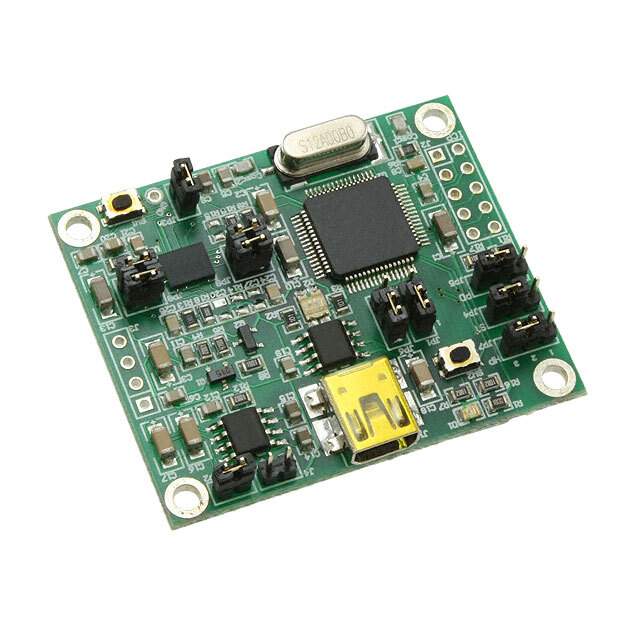

STEVAL-MKI079V1 Board Overview

The STEVAL-MKI079V1 is an advanced sensor board developed by STMicroelectronics, designed to showcase the capabilities of the LPS331AP MEMS pressure sensor. This sensor is a high-end digital output barometer that can measure pressures ranging from 260 to 1260 hPa. It is particularly well-suited for applications that require a high level of precision in pressure measurement and is commonly used in enhancing GPS navigation, weather monitoring systems, and vertical velocity indication (variometers).

Key Features

• Embedded LPS331AP MEMS pressure sensor, which offers a high resolution of 0.020 hPa in high-resolution mode.
• Wide operating pressure range suitable for altimetry and barometry applications within the 260 to 1260 hPa range.
• Low power consumption, making it ideal for battery-operated devices.
• Digital two-wire I²C and SPI serial interface, ensuring easy integration with most microcontrollers.
• Supply voltage range of 2.5V to 3.6V, catering to a broad spectrum of product designs.
• Temperature compensation, which ensures reliable and accurate readings across a wide temperature range.

Applications

The STEVAL-MKI079V1 is versatile and can be used in a variety of applications. These include:

• GPS navigation systems: Enhancing accuracy with altitude data.
• Weather station equipment: Providing reliable barometric pressure measurements.
• Indoor navigation: Assisting in floor detection in malls and large buildings.
• Sports watches and fitness devices: Monitoring elevation for activity tracking.

Design and Integration

The board is designed for easy integration with prototyping platforms and existing projects. It comes with a DIL 24-pin socket which is compatible with standard prototyping boards. The STEVAL-MKI079V1 also includes free drivers and software API compatible with the STM32Cube ecosystem, which simplifies the design process and accelerates time-to-market for developers and engineers.

Additional Resources

STMicroelectronics provides comprehensive technical documentation for the STEVAL-MKI079V1, including datasheets, application notes, and a detailed user manual. Developers can also access a wide range of development tools and community support forums to assist in the implementation and deployment of their applications.
