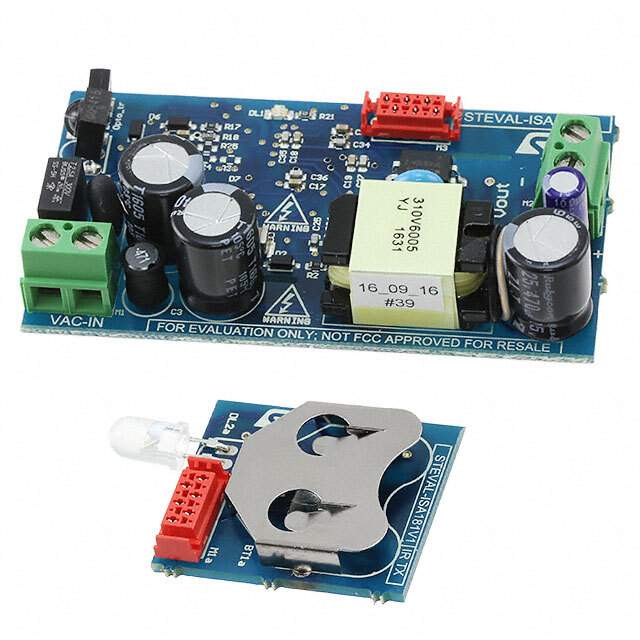

Introducing the STEVAL-ISA181V1 from STMicroelectronics

The STEVAL-ISA181V1 is an advanced evaluation board designed by STMicroelectronics, showcasing the capabilities of their state-of-the-art voltage regulators. This product is part of the ST's VIPerPlus series, which is renowned for its high energy efficiency and reliability. The board features the VIPer11 off-line converter, which integrates a robust 800 V avalanche-rugged power MOSFET with PWM current-mode control.

The evaluation board is specifically designed to demonstrate the performance of the VIPer11 in a buck converter application. It operates from a wide range input voltage, ranging from 4.5 V to 30 V, making it suitable for a variety of applications including but not limited to industrial control systems, home appliances, and smart metering.

One of the key benefits of the STEVAL-ISA181V1 is its compact size and minimal BOM (Bill of Materials), which is achieved by integrating multiple functions into the VIPer11. This not only reduces the overall cost but also simplifies the design process for engineers. The board provides a fixed 5 V output voltage with up to 730 mA current capability, which is ideal for powering secondary microcontroller-based systems or other low-power devices.

For enhanced safety and performance, the STEVAL-ISA181V1 includes features such as overcurrent protection, thermal shutdown, and VCC under-voltage lockout with hysteresis. The board also boasts minimal EMI emissions and meets EN55022 Class B standards, making it suitable for applications sensitive to electromagnetic disturbances.

Developers and engineers can take advantage of the STEVAL-ISA181V1's versatility and ease of use to accelerate their design process. The evaluation board is fully supported with technical documentation, including schematics, layout suggestions, and application notes, which are all available on the STMicroelectronics website.

In summary, the STEVAL-ISA181V1 is an exemplary solution for those looking to implement an efficient and reliable power supply in their electronic designs. With its robust feature set and comprehensive support, this evaluation board is a testament to STMicroelectronics' commitment to delivering high-quality power conversion solutions.
