STEVAL-ISA144V1 - An Advanced Power Solution

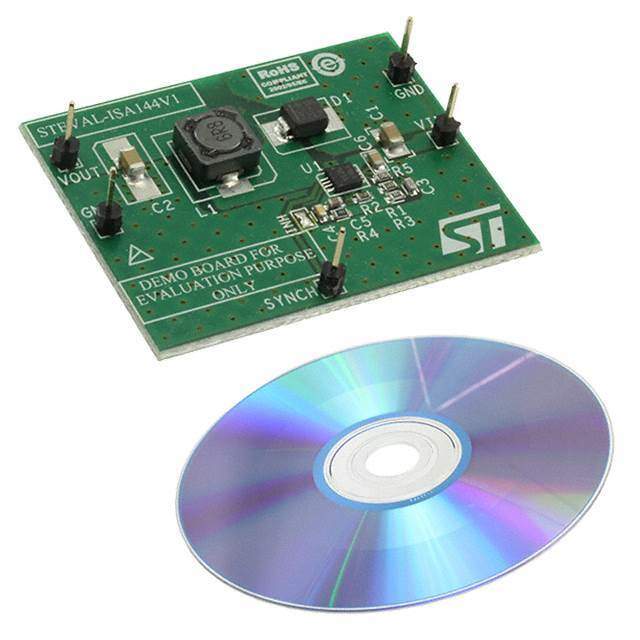

The STEVAL-ISA144V1 is a cutting-edge product from STMicroelectronics, designed to showcase the performance of the L6983 synchronous monolithic step-down regulator in a real-world application. This evaluation board is perfect for those seeking a compact, high-efficiency power solution.

Key Features

• High Efficiency: The L6983 is a highly efficient device with a wide input voltage range, making the STEVAL-ISA144V1 suitable for a variety of applications.
• Adjustable Output: Users can adjust the output voltage from 0.85 V to VIN, providing flexibility for different power requirements.
• Compact Design: With its small size, this evaluation board is ideal for space-constrained applications.
• Thermal Protection: The board includes overtemperature protection, ensuring reliable operation under various conditions.

Applications

The STEVAL-ISA144V1 is versatile and can be used in a wide range of applications, from industrial to consumer electronics. It is particularly well-suited for:

• 5V USB power supplies
• Battery-powered equipment
• Microcontroller power supplies
• IoT devices

Technical Specifications

The evaluation board is built around the L6983 regulator, which is capable of delivering up to 3 A of current. It operates over a wide input voltage range from 4 V to 38 V, making it suitable for handling various input sources.

Design and Ease of Use

The STEVAL-ISA144V1 is designed with the end-user in mind. It features an easy-to-use layout that simplifies the testing and evaluation process. Engineers can quickly integrate the board into their prototypes or use it as a reference design for their own power supply solutions.

Support and Resources

STMicroelectronics provides comprehensive support for the STEVAL-ISA144V1, including detailed documentation, application notes, and design guidelines. Users can access these resources on the ST website to accelerate development and ensure the best use of the evaluation board.
