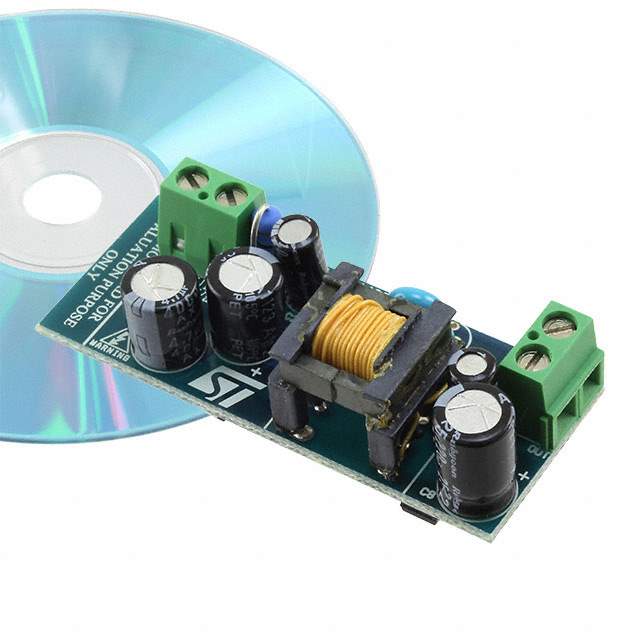

STEVAL-ISA135V1 - STMicroelectronics Evaluation Board

The STEVAL-ISA135V1 from STMicroelectronics is an advanced evaluation board designed for engineers and developers who require a reliable and efficient power management solution. This evaluation platform is tailored for testing the performance of the L7987, a high-efficiency, 2 A step-down switching regulator in a VFQFPN 3x3 mm package.

The L7987 is capable of providing a wide input voltage range from 4.5 V to 61 V, making the STEVAL-ISA135V1 suitable for a variety of applications, including industrial, automotive, and consumer electronics. With its adjustable output voltage that can be set from 0.8 V to VIN, this evaluation board offers exceptional versatility for designers looking to test different voltage scenarios.

One of the key features of the STEVAL-ISA135V1 is its high efficiency, which can reach up to 90%, depending on the operating conditions. This efficiency is crucial for applications that require low power consumption and heat dissipation. Additionally, the board is equipped with overcurrent and thermal protection features, ensuring safe operation under various conditions.

The evaluation board also boasts a pulse skipping mode that enhances efficiency at light loads, and a synchronization feature that allows the switching frequency to be synchronized with an external clock, thus reducing electromagnetic interference (EMI) in noise-sensitive applications.

With its compact size and comprehensive set of test points, the STEVAL-ISA135V1 evaluation board is user-friendly and easily integrated into existing setups for quick testing and prototyping. Engineers can leverage the board to rapidly evaluate the L7987 regulator's performance and accelerate the development of their power supply solutions.

Overall, the STEVAL-ISA135V1 is an invaluable tool for any professional looking to explore the capabilities of the L7987 regulator and develop high-performance power management systems with STMicroelectronics technology.
