STEVAL-ISA082V1 - STMicroelectronics Product Overview

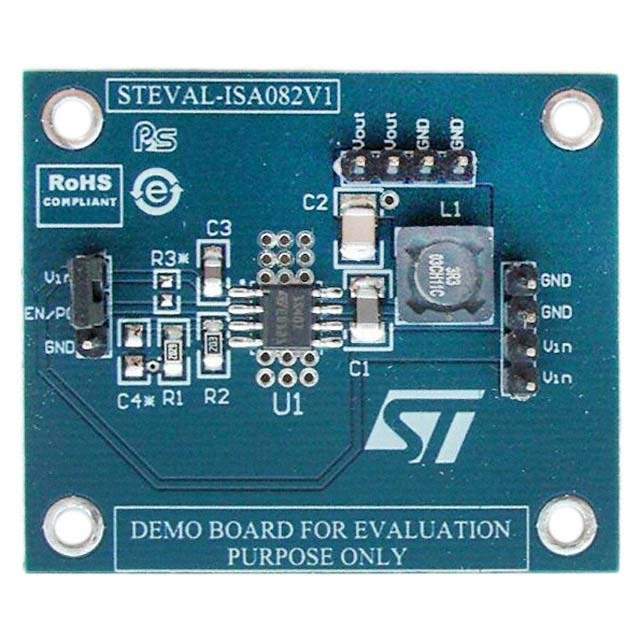

The STEVAL-ISA082V1 is a highly efficient, compact, and versatile evaluation board designed by STMicroelectronics. This product is part of the ST's VIPerPlus series and is particularly suited for evaluating the VIPer06XS high-voltage converter, which integrates a PWM controller and a 600 V rugged power MOSFET.

The board is tailored for switch mode power supplies (SMPS) and is capable of delivering up to 4 W of nominal power with excellent power conversion efficiency. This makes it a suitable choice for a wide range of applications, including home appliances, building automation, consumer electronics, and industrial control systems.

One of the key features of the STEVAL-ISA082V1 is its ability to operate over a wide input voltage range, from 85 V to 265 V AC, which ensures reliability and stability across various power conditions. The board supports both isolated and non-isolated topologies, giving designers the flexibility to adapt to different circuit configurations and requirements.

The evaluation board comes with a set of features that make it easy to prototype and test power supply designs. These include an onboard soft-start, error amplifier, overvoltage protection, overload protection, and thermal shutdown. The VIPer06XS device's built-in protections ensure robust performance and longevity of the application it powers.

For engineers and designers looking to quickly implement a power solution, the STEVAL-ISA082V1 offers a convenient and practical platform. The board's layout is optimized for minimal noise and EMI emissions, and it includes a comprehensive set of test points for easy measurement and debugging. Additionally, the board is supported by extensive documentation and application notes that help accelerate the development process.

Overall, the STEVAL-ISA082V1 is a testament to STMicroelectronics' commitment to providing innovative, high-quality power management solutions that cater to the needs of modern electronic applications.
