Maxim Integrated MAX8686EVKIT# Evaluation Kit

The MAX8686EVKIT# from Maxim Integrated is a comprehensive evaluation kit designed to facilitate the testing and performance assessment of the MAX8686, a high-efficiency, step-down, switch-mode power-supply IC. This evaluation kit is an essential tool for engineers and designers who are looking to integrate the MAX8686 into their power management solutions, particularly in applications that demand compact size, high efficiency, and precise voltage regulation.

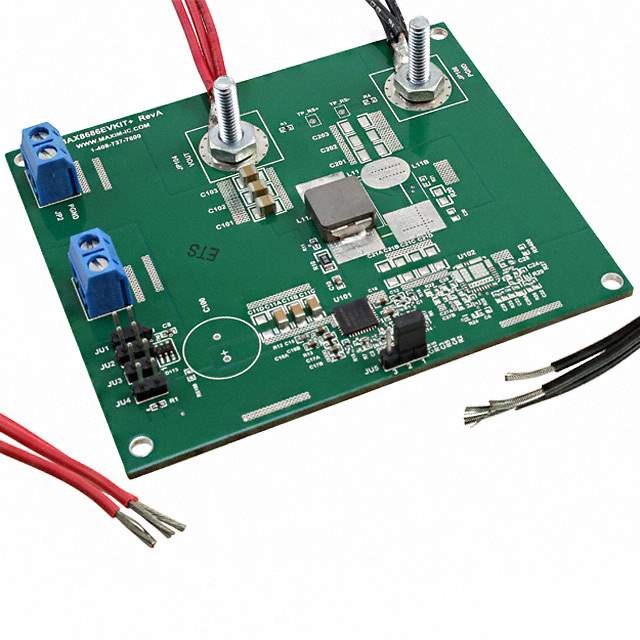

The MAX8686EVKIT# comes with a fully assembled and tested evaluation board that showcases the capabilities of the MAX8686 IC. The board is configured to demonstrate the IC's operation in a typical step-down (buck) converter application. It is designed to deliver an adjustable output voltage from a wide input voltage range, making it suitable for a variety of power supply scenarios.

Key features of the MAX8686EVKIT# include:

• Adjustable output voltage settings for flexibility in different design scenarios.
• High-efficiency synchronous buck operation, which reduces heat dissipation and improves system reliability.
• Integrated MOSFETs that minimize external component count and simplify the design process.
• Frequency synchronization capability to reduce electromagnetic interference (EMI) in sensitive applications.
• Thermal protection and overcurrent protection features that ensure safe operation under abnormal conditions.
• Compact design that is ideal for space-constrained applications.

The evaluation kit provides convenient test points for critical signals and power nodes, allowing for easy probing and performance analysis. Additionally, the kit includes comprehensive documentation, which covers the setup and operation of the evaluation board, as well as the features and specifications of the MAX8686 IC. This documentation aids users in quickly getting started with their evaluation and in understanding how to integrate the IC into their own designs.

Whether you are developing power supplies for consumer electronics, telecommunications, or industrial systems, the MAX8686EVKIT# from Maxim Integrated is an invaluable tool for ensuring that your designs meet the stringent requirements of modern electronic applications.
