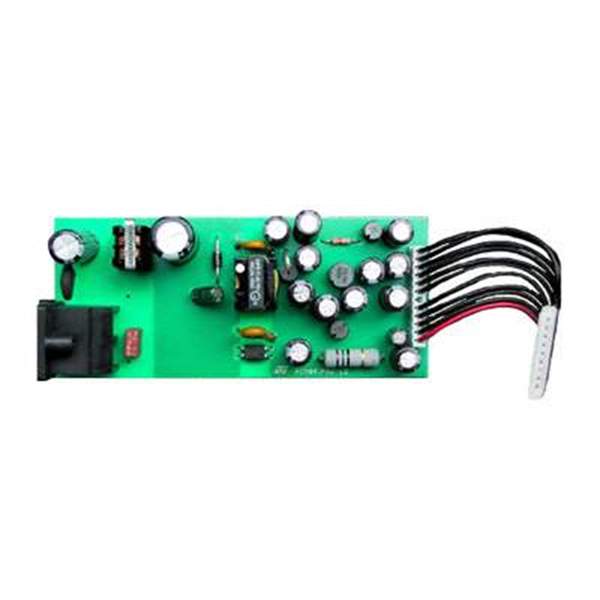

STEVAL-ISA016V1 - STMicroelectronics Power Management IC Development Tools

The STEVAL-ISA016V1 from STMicroelectronics is a highly efficient power management integrated circuit development tool designed to facilitate the design and testing of advanced power solutions. This evaluation board is specifically crafted for engineers and developers who require a reliable platform to assess the performance of certain DC-DC converter ICs within ST's extensive portfolio.

This evaluation board showcases the L7986A, a robust 3A step-down switching regulator with a wide input voltage range, making it suitable for a variety of applications, including industrial, consumer, and computing devices. The L7986A's adjustable output voltage and synchronization capabilities are among its key features, providing designers with flexibility and precision in their power supply designs.

The STEVAL-ISA016V1 is equipped with a set of features that ensure ease of use and a comprehensive evaluation experience. These include a pre-configured setup that allows immediate testing, thermal protection, and a range of configurable options for under-voltage lockout, soft-start, and maximum duty cycle. Additionally, the board is designed with high-quality components to ensure reliable operation under different load conditions.

Key specifications of the STEVAL-ISA016V1 include:

• Input voltage range from 10 V to 50 V
• Adjustable output voltage from 1.235 V to 35 V
• 3A maximum output current
• High efficiency, up to 95%
• 150 kHz to 1.5 MHz adjustable switching frequency
• Over-temperature and over-current protection
• RoHS compliant and designed to meet international safety standards

The STEVAL-ISA016V1 is an excellent tool for designers looking to rapidly prototype and test power supply circuits with the L7986A regulator. Whether it's for proof-of-concept demonstrations, performance evaluations, or simply to expedite the design process, this development board from STMicroelectronics is an invaluable asset for any power management project.
