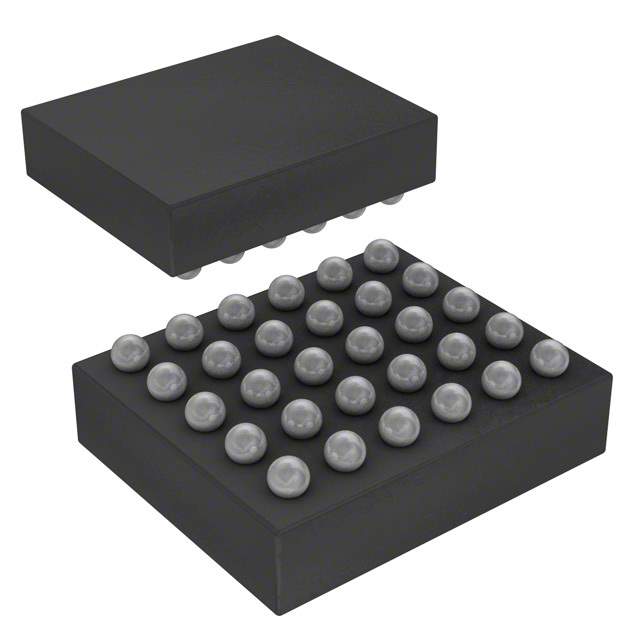

STBC02AJR: Battery Charger and Power Management Solution

The STBC02AJR from STMicroelectronics is a highly integrated power management and battery charger IC designed to cater to the needs of modern portable applications. This device is particularly suitable for wearable technology, Internet of Things (IoT) devices, and other applications where space is at a premium and efficient power management is crucial.

The STBC02AJR offers a complete charging solution for single-cell Lithium-ion and Lithium-polymer batteries with a wide range of programmable charging parameters. It supports a variety of charging modes including preconditioning, constant current, and constant voltage phases, ensuring that the battery is charged safely and efficiently. The charging parameters can be tailored to the specific requirements of the battery and the application, which maximizes the lifespan of the battery and the reliability of the device.

One of the standout features of the STBC02AJR is its integration of a linear battery charger with smart management features. It includes a JEITA (Japan Electronics and Information Technology Industries Association) compliant temperature monitoring system that adjusts the charge parameters based on the battery temperature, enhancing safety and prolonging battery life. Additionally, the chip offers overcharge and over-discharge protection, preventing damage to the battery and the device due to extreme voltage conditions.

The power management capabilities of the STBC02AJR are not limited to charging. It also includes a 150mA LDO (Low Dropout Regulator) and a 150mA DC-DC step-down converter, providing stable power supply rails for the system. These features ensure that the device operates efficiently even when running from a battery or when connected to a USB port or wall adapter.

For added flexibility, the STBC02AJR supports power path management, allowing the system to be powered directly from the input source while simultaneously charging the battery. This minimizes the charging time and ensures that the device remains operational even when the battery is depleted.

In summary, the STBC02AJR from STMicroelectronics is a versatile and efficient solution for power management and battery charging in compact electronic devices. Its advanced features and integrated design make it an ideal choice for designers looking to optimize power usage and extend battery life in their products.
