Products specifications

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series ST7
Package Tube
Product Status Obsolete
Core Processor ST7
Core Size 8-Bit
Speed 8MHz
Connectivity I2C, SCI, USB
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 19
Program Memory Size 4KB (4K x 8)
Program Memory Type FLASH
RAM Size 384 x 8
Supply Voltage - Operating 4V ~ 5.5V
Data Converters A/D 8x8b
Oscillator Type External
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting SMD (SMT)

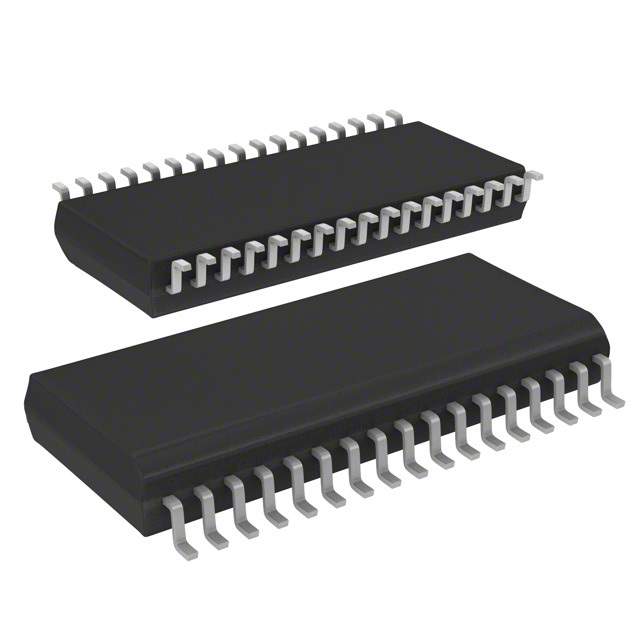

Package / Case 34-BSOP (0.295", 7.50mm Width)
Base Product Number ST72F63
Standard Package 28
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 1263193-ST72F63BK1M1
Ultra Librarian 3D Model Ultra Librarian ST72F63BK1M1 CAD Model

Description

The ST72F63BK1M1 is a versatile and high-performance microcontroller unit (MCU) designed and manufactured by STMicroelectronics. This MCU is part of the ST7 family, which is renowned for its robust architecture, enhanced peripheral set, and low power consumption, making it an ideal choice for a wide range of applications.

At the heart of the ST72F63BK1M1 lies an 8-bit CPU core, which operates at a maximum frequency of 8 MHz, providing the computational power to handle complex tasks efficiently. The MCU is equipped with 8KB of Flash program memory, ensuring ample space for application code and data storage. Additionally, it boasts 384 bytes of RAM for temporary data storage and 128 bytes of EEPROM, which can be used for storing critical data that must be preserved during power-down scenarios.

The ST72F63BK1M1 features a comprehensive set of peripherals, including multiple 16-bit timers, a flexible 10-bit analog-to-digital converter (ADC), and a robust serial communication interface. These peripherals support a variety of functionalities, from precise time measurements to efficient data conversion and communication, enabling the MCU to adapt to diverse application requirements.

Connectivity is a strength of this microcontroller, as it includes UART for serial communication, SPI for high-speed synchronous data transfer, and I²C for multi-master communication. This makes it suitable for embedded systems that require communication with sensors, actuators, and other MCUs or peripherals.

Designed with power efficiency in mind, the ST72F63BK1M1 operates within a voltage range of 3.0V to 5.5V, ensuring compatibility with both 3.3V and 5V logic levels. Its low-power modes enable significant energy savings, which is critical for battery-operated devices.

The MCU comes in a 32-pin SDIP package, which makes it easy to integrate into printed circuit boards (PCBs). It is also characterized by an industrial temperature range from -40°C to +85°C, assuring reliable operation under harsh environmental conditions.

In summary, the ST72F63BK1M1 microcontroller from STMicroelectronics is a powerful, feature-rich MCU suitable for a wide array of applications, from consumer electronics to industrial automation, owing to its robust architecture, comprehensive peripheral set, and efficient power management.
