Product Overview

The PIC32MX695F512H-80I/PT is a high-performance 32-bit microcontroller from Microchip Technology, designed for advanced applications that require substantial data processing capabilities. It is part of the PIC32MX family, which is renowned for its high-speed operation, extensive feature set, and flexibility to handle a wide range of tasks.

Key Features

• Core: The microcontroller is built around a powerful MIPS M4K Core, which operates at 80 MHz, providing the computational power necessary for complex algorithms and real-time processing.
• Memory: It comes with 512 KB of Flash memory for program storage and 128 KB of RAM for data, which is sufficient for multitasking and buffering large amounts of data.
• Digital Signal Processing: The device includes integrated DSP features, making it suitable for digital audio processing, sensor data analysis, and other DSP applications.
• I/O and Peripherals: A rich set of peripherals is available, including USB, CAN, serial communication modules (UART, SPI, I2C), and analog inputs, which provide the versatility needed for various design requirements.
• Analog Features: It has a 10-bit, 1 Msps Analog-to-Digital Converter (ADC), which allows for precise analog signal measurement and conversion.
• Temperature Range: The microcontroller operates within an industrial temperature range of -40°C to +85°C, ensuring reliability in harsh environments.

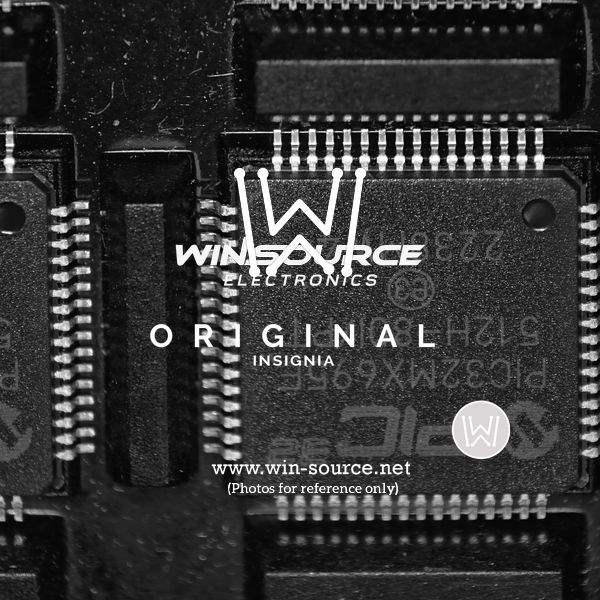

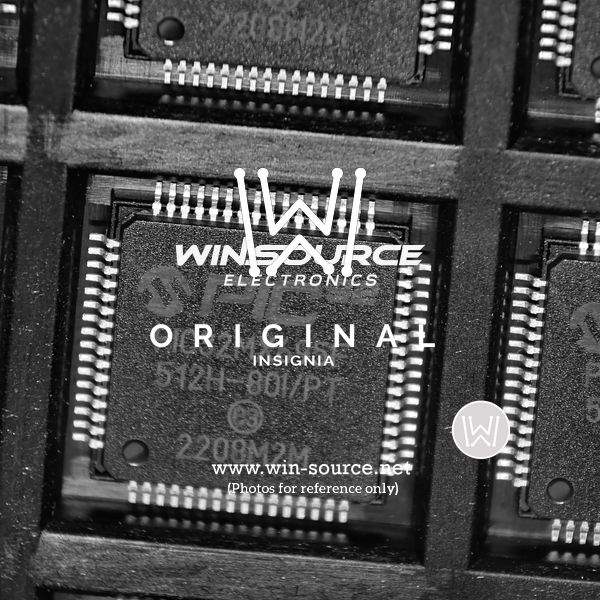

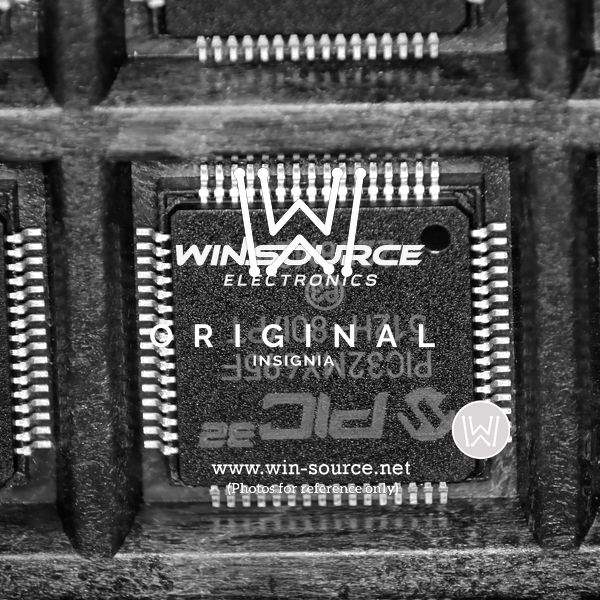

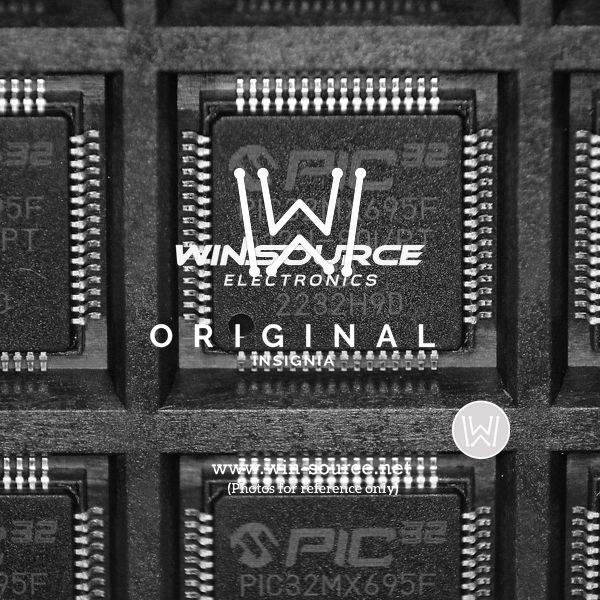

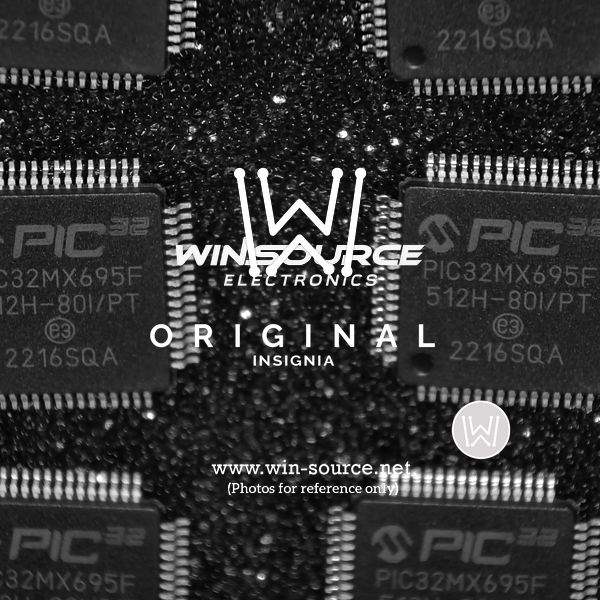

• Package: The PIC32MX695F512H-80I/PT is available in a 64-pin TQFP package, which is ideal for space-constrained applications.

Applications

The versatility of the PIC32MX695F512H-80I/PT makes it suitable for a wide range of applications, including but not limited to:

• Industrial Control Systems
• Internet of Things (IoT) devices
• Automotive applications
• Medical devices
• Complex embedded systems
• Consumer electronics

Conclusion

With its robust processing core, ample memory, and extensive I/O capabilities, the PIC32MX695F512H-80I/PT from Microchip Technology is an excellent choice for developers who require a high-performance microcontroller that can handle demanding applications while maintaining flexibility and ease of integration.
