Products specifications

Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Series ST7
Packaging Tray
Part Status Obsolete(EOL)
Core Processor ST7
Core Size 8-Bit
Speed 16MHz
Connectivity SCI, SPI
Peripherals LVD, POR, PWM, WDT
Number of I/O 44
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
RAM Size 512 x 8
Supply Voltage 3.2 V ~ 5.5 V
Data Converters A/D 8x8b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)

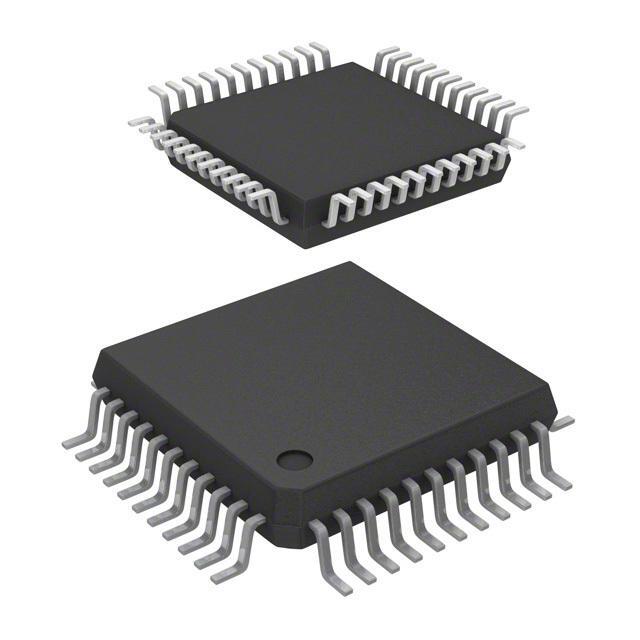

Package 44-LQFP
Win Source Part Number 1260383-ST72C314J4T6
Manufacturer Homepage www.st.com
Family Name ST72C314
Introduction Date September 01, 1999
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 160
Ultra Librarian 3D Model Ultra Librarian ST72C314J4T6 CAD Model

Description

ST72C314J4T6 Microcontroller by STMicroelectronics

The ST72C314J4T6 is a robust 8-bit microcontroller from STMicroelectronics, designed to deliver high performance and versatility for embedded applications. This microcontroller is part of the ST7 family, which is well-known for its reliability and efficiency in handling a wide range of tasks in industrial and consumer electronics.

At the heart of the ST72C314J4T6 lies a high-speed 8-bit CPU, which operates at a frequency of up to 8 MHz. This processor is capable of executing instructions quickly and efficiently, making it an excellent choice for time-sensitive applications. The device also includes 16 KB of program memory (Flash) and 384 bytes of RAM, providing ample storage for code and data.

One of the standout features of this microcontroller is its rich set of peripherals. It includes a versatile 10-bit analog-to-digital converter (ADC) with up to 12 channels, allowing for precise measurement of analog signals. The device also has a flexible serial communication interface that supports various protocols, including SPI and I²C, enabling easy communication with other devices and sensors.

For timing and control, the ST72C314J4T6 offers multiple 16-bit timers with input capture, output compare, and PWM capabilities. These features are essential for tasks that require precise timing, such as motor control or waveform generation. Additionally, the microcontroller provides a watchdog timer to ensure system reliability and prevent software lock-up.

The microcontroller is equipped with up to 34 I/O ports, providing a generous number of pins for interfacing with external hardware. These I/O lines are highly configurable, allowing developers to tailor the microcontroller to the specific needs of their applications.

With its low power consumption and power-saving modes, the ST72C314J4T6 is also suitable for battery-powered devices. The microcontroller supports a wide operating voltage range from 3.0V to 5.5V, enabling flexibility in power supply design.

In summary, the ST72C314J4T6 from STMicroelectronics is a powerful and flexible 8-bit microcontroller that offers an impressive array of features for a variety of applications. Its combination of processing power, memory, and peripherals makes it a smart choice for designers looking to create sophisticated and reliable embedded systems.
