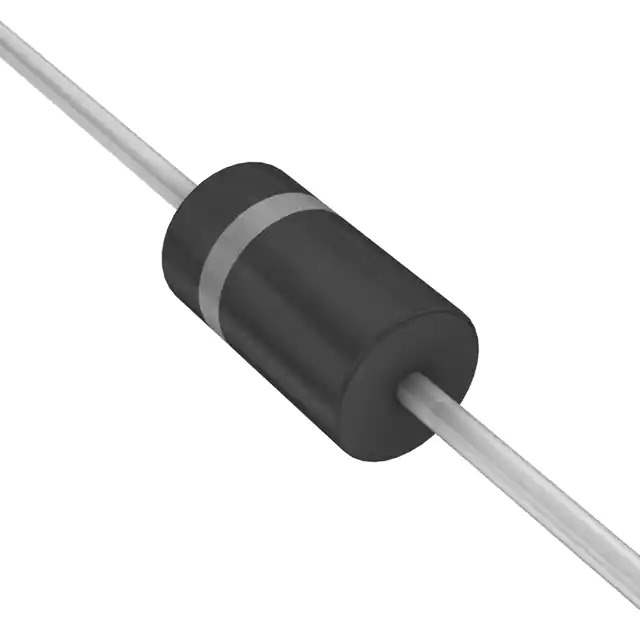

Products specifications

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr ON Semiconductor
Series Mosorb™
Package Bulk
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 36.8V
Voltage - Breakdown (Min) 40.9V
Voltage - Clamping (Max) @ Ipp 59.3V
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case DO-201AD, Axial
Supplier Device Package Axial
Base Product Number 1N6286
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 850640-1N6286A
Ultra Librarian 3D Model Ultra Librarian 1N6286A CAD Model

Description

The 1N6286A is a robust transient voltage suppression (TVS) diode designed by ON Semiconductor, a leading name in the semiconductor industry. This high-quality TVS diode is engineered to protect sensitive electronic equipment from voltage spikes and surges, ensuring reliable performance and longevity of your devices.

Key Features

  • Stand-Off Voltage: The 1N6286A offers a stand-off voltage of 18V, which makes it suitable for a wide range of applications where this level of protection is required.
  • Peak Pulse Power: It can handle an impressive peak pulse power of 1500 Watts at 10/1000μs waveform, providing exceptional protection against transient voltage spikes.
  • Clamping Voltage: With a low clamping voltage, this TVS diode ensures that any excess voltage is quickly suppressed, minimizing the risk to connected components.
  • Fast Response Time: The device reacts almost instantaneously to transient changes, safeguarding components without delay.
  • Reverse Leakage: Designed with a low reverse leakage current, it ensures minimal power loss when the diode is in its standby state.

Applications

The 1N6286A is ideal for protecting sensitive electronics in a variety of applications, including:

  • Power supply circuits
  • Automotive systems
  • Industrial and commercial machines
  • Telecommunication devices
  • Consumer electronics

Quality and Reliability

ON Semiconductor is committed to the highest standards of quality and reliability, and the 1N6286A is no exception. This TVS diode is manufactured in state-of-the-art facilities, ensuring that each component meets rigorous industry standards for performance and durability.

Environmental Compliance

In line with ON Semiconductor's dedication to environmental stewardship, the 1N6286A is produced with eco-friendly materials and processes, adhering to RoHS and REACH directives. This commitment ensures that the product not only protects your electronic devices but also contributes to a greener planet.
